Indoor Fiber Optic Cable
>
|
| Place of Origin | China |
| Brand Name | Fiberplan |
| Certification | ISO 9001; TÜV certificate |
| Model Number | GJFJH |

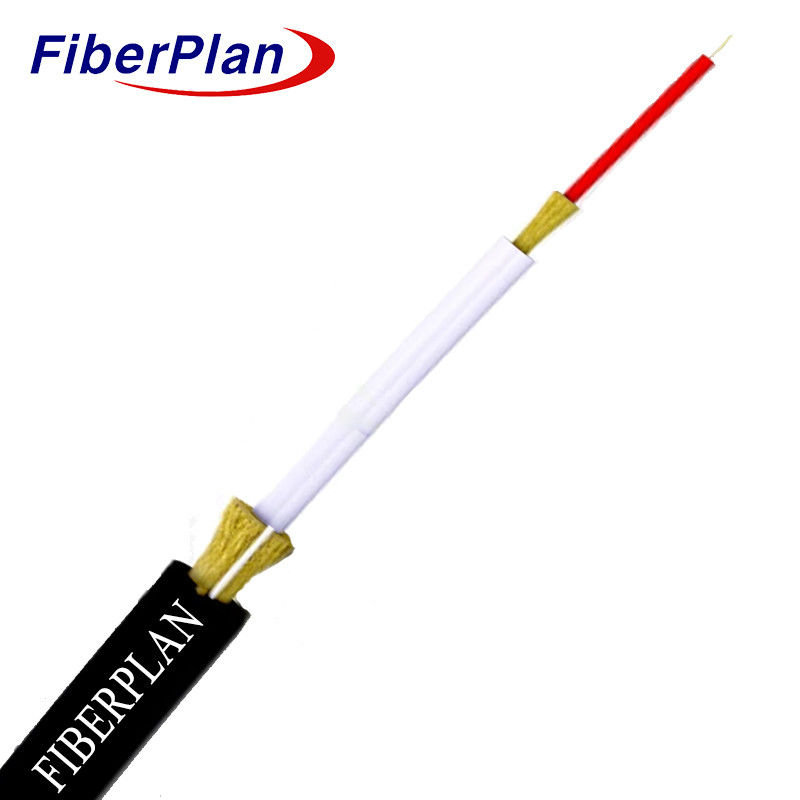

High Strength Kevlar Yarn Member, Flame-Retardant Jacket Simplex flexible
fiber optic cable
Description
Indoor and outdoor PTO cable
France telecom
Application
* Ideal for indoor and outdoor Plain Old Telephone (POT) distribution.
* Construction possible without needing a power shutdown.
* Designed for convenient installation and user-friendly operation.
Characteristics
1 High-strength Kevlar yarn member, lightweight for enhanced durability.
2 High-integrated fiber ribbon design, promoting efficient integration.
3 Flame-retardant jacket ensures safety.
4 FRP (Fiber Reinforced Plastic) component adds strength and resilience to the cable's structure.
Cable construction details
| Material | Thickness (mm) | OD(mm) | ||||||||||
| Tight buffer | 0.9 simplex G657A1 tight buffered LSZH white | 0.3+/-0.03 | 0.9+/-0.05 | |||||||||
| Inner sheath | LSZH | DW9023N-HT06 white D9113 | 0.6 +/-0.01 | 3.0+/-0.1 | ||||||||
| Aramid yarn | DuPont 800D*7 pcs | / | / | |||||||||
| Outer sheath | PE | PEA1 | 1.35+/-0.1 | 6.5+/-0.1 | ||||||||
| Ripcord | (1110*3)* 2 pcs red | / | / | |||||||||
| FRP | Ø1.0*2 pcs | / | 1.0 | |||||||||
| Aramid yarn | DuPont 800D*22 pcs | / | / | |||||||||
Cable mechanical and chararcteristics
| Tensile strength | Long term(N) | 200N | |||||
| Short term(N) | 400N | ||||||
| Crush load | Long term (N/100mm) | 500N/100mm | |||||
| Short term (N/100mm) | 1000N/100mm | ||||||
| Bending radius | Dynamic (mm) | 20D | |||||
| Static (mm) | 10D | ||||||
| Temperature | -20℃～+70℃ | ||||||
| Strength member | Kevlar | ||||||
Fiber characteristic
| Fiber style | Unit | SM G652 |
SM G652D |
MM 50/125 |
MM 62.5/125 |
MM OM3-300 |
|
| condition | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | ≤ | ≤ | ≤ | ≤3.0/1.0 | ≤3.0/1.0 | |
| 0.36/0.23 | 0.34/0.22 | 3.0/1.0 | ---- | ---- | |||
| Dispresion | 1550nm | Ps/(nm*km) | ---- | ≤18 | ---- | ---- | Dispresion |
| 1625nm | Ps/(nm*km) | ---- | ≤22 | ---- | ---- | ||
| Bandwith | 850nm | MHZ.KM | ---- | ---- | ≧400 | ≧160 | Bandwith |
| 1300nm | MHZ.KM | ---- | ---- | ≧800 | ≧500 | ||
| Zero dispersion wavelength | nm | 1300-1324 | ≧1302, ≤1322 |
---- | ---- | ≧ 1295, ≤1320 |
|
| Zero dispresion slope | nm | ≤0.092 | ≤0.091 | ---- | ---- | ---- | |
| PMD Maximum Individual Fibr | ≤0.2 | ≤0.2 | ---- | ---- | ≤0.11 | ||
| PMD Design Link Value | Ps(nm2*km) | ≤0.12 | ≤0.08 | ---- | ---- | ---- | |
| Fibre cutoff wavelength λc | nm | ≧ 1180, ≤1330 |
≧1180, ≤1330 |
---- | ---- | ---- | |
| Cable sutoff wavelength λcc |
nm | ≤1260 | ≤1260 | ---- | ---- | ---- | |
| MFD | 1310nm | um | 9.2+/-0.4 | 9.2+/-0.4 | ---- | ---- | ---- |
| 1550nm | um | 10.4+/-0.8 | 10.4+/-0.8 | ---- | ---- | ---- | |
| Numerical Aperture(NA) | ---- | ---- | 0.200+/ -0.015 |
0.275+/-0. 015 |
0.200+/-0 .015 |
||
| Step(mean of bidirectional measurement) |
dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| Irregularities over fiber length and point |
dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| Dicontinuity | |||||||
| Difference backscatter coefficient |
dB/km | ≤0.05 | ≤0.03 | ≤0.08 | ≤0.10 | ≤0.08 | |
| Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | ||||
| Core dimater | um | 50+/-1.0 | 62.5+/-2.5 | 50+/-1.0 | |||
| Cladding diameter | um | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | |
| Coating diameter | um | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | |
| Coating/chaffinch concentrically error |
um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | |
| Core/cladding conentricity error | um | ≤0.6 | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 | |
| Curl(radius) | um | ≤4 | ≤4 | ---- | ---- | ---- | |
