Duplex Zipcord Armored Indoor Cable GJFJBV
  • Duplex Zipcord Armored Indoor Cable GJFJBV
  • Duplex Zipcord Armored Indoor Cable GJFJBV
Duplex Zipcord Armored Indoor Cable GJFJBV

Duplex Zipcord Armored Indoor Cable GJFJBV

Place of Origin China
Brand Name Fiberplan
Certification ISO 9001; TÜV certificate
Model Number GJFJBV duplex cable
Product Details
Cable Type:
Duplex
Fiber Diameter:
9/125μm (Single-mode), 50/125μm Or 62.5/125μm (Multi-mode)
Jacket Color:
Yellow
Number Of Fibers:
2
Bend Radius:
10x Cable Diameter
Storage Temperature:
-40°C To +70°C
Tight Buffer Diameter:
0.9mm
Insertion Loss:
<0.3dB
Jacket Material:
PVC
Tensile Strength:
100N
Wavelength:
1310/1550nm
Highlight:

Zipcord Duplex Cable

,

Armored Duplex Cable

,

GJFJBV indoor armored fiber optic cable

Payment & Shipping Terms
Minimum Order Quantity
1Km
Price
Negotiation
Packaging Details
Wooden Drum
Delivery Time
5~8 work days
Payment Terms
L/C, L/C, D/P, T/T, Western Union,
Supply Ability
5000 km per month
Product Description
Duplex zipcord armored Indoor cable (GJFJBV)

Description
This armored Duplex Zipcord Cable is equipped with either 900μm or 600μm flame-retardant tight buffer fiber for
its optical communication medium. The tight buffer fiber is reinforced with a layer of steel wire and aramid yarn,
serving as strength member units. This assembly is further extruded with a layer of PVC or LSZH material as the
inner jacket. The cable is then finalized with a layer of flat PVC or LSZH jacket, providing an outer sheath with low
smoke, zero halogen, and flame-retardant properties.

Application
1 Indoor Distribution Adaptability: Tailored for indoor distribution, this cable is designed to seamlessly integrate into
communication networks within buildings.
2 Effective Pigtail Integration: Well-suited to function as a pigtail, it seamlessly connects with communication equi-
pment, ensuring reliable and efficient performance.
3 Compatibility with Communication Equipment: Specifically crafted to meet the demands of communication equip-
ment, ensuring compatibility and effective service.
4 Convenient Installation: Engineered for user-friendly installation, the cable can be conveniently set up, providing a
straightforward process for various communication applications.

Characteristic

1 High-Strength Kevlar Yarn Member: The cable incorporates a robust structure with high-strength Kevlar

   yarn, providing durability and strength.

2 High-Quality Tight Buffered or Loose Tube: Featuring either high-quality tight buffered or loose tube design,

   the cable ensures optimal protection for internal fibers.

3 Soft and Easy to Strip: Engineered for user convenience, the cable is soft and easy to strip, simplifying the

   installation process.

4 Round Construction: With a round construction, the cable is designed for practicality, allowing for easy

   handling and installation in various applications.

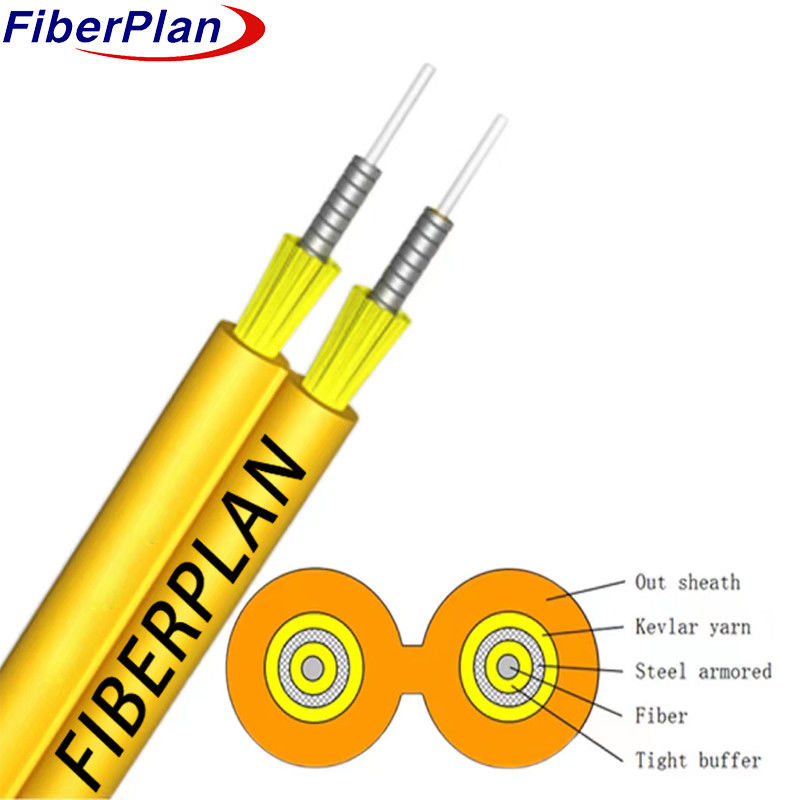

 Cable construction details

Technical Parameters
Out Diameter(MM) 2.8×5.8 Weight(KG) 35
3.0×6.2 35
Inner Diameter(MM) 0.9
0.9
Storage temperature(℃) -20+60
Min Bending Radius(mm) Long term  10D
Min Bending
Radius(mm)		 Short term 20D
Min allowable
Tensile Strength(N)		 Long term  300
Min allowable
Tensile Strength(N)		 Short term 1000
Crush Load (N/100mm) Long term 500
Crush Load (N/100mm) short term 1000



Standard color of fiber and tube

Standard Colour Identification
No. 1 2
Color Yellow White



Fiber characteristic

Fiber style Unit SM
G652		 SM
G652D		 MM
50/125		 MM
62.5/125		 MM
OM3-300
condition nm 1310/1550 1310/1550 850/1300 850/1300 850/1300
attenuation dB/km ≤ ≤ ≤ ≤3.0/1.0 ≤3.0/1.0
0.36/0.23 0.34/0.22 3.0/1.0 ---- ----
Dispresion 1550nm Ps/(nm*km) ---- ≤18 ---- ---- Dispresion
1625nm Ps/(nm*km) ---- ≤22 ---- ---- 　
Bandwith 850nm MHZ.KM ---- ---- ≧400  ≧160  Bandwith
1300nm MHZ.KM ---- ---- ≧800  ≧500 　
Zero dispersion wavelength nm 1300-1324 ≧1302,
≤1322		 ---- ---- ≧ 1295,
≤1320
Zero dispresion slope nm ≤0.092 ≤0.091 ---- ---- ----
PMD Maximum Individual Fibr 　 ≤0.2 ≤0.2 ---- ---- ≤0.11
PMD Design Link Value Ps(nm2*k
m)		 ≤0.12 ≤0.08 ---- ---- ----
Fibre cutoff wavelength λc nm ≧ 1180,
≤1330		 ≧1180,
≤1330		 ---- ---- ----
Cable sutoff
wavelength λcc		 nm ≤1260 ≤1260 ---- ---- ----
MFD 1310nm um 9.2+/-0.4 9.2+/-0.4 ---- ---- ----
1550nm um 10.4+/-0.8 10.4+/-0.8 ---- ---- ----
Numerical
Aperture(NA)		 　 ---- ---- 0.200+/
-0.015		 0.275+/-0.
015		 0.200+/-0
.015
Step(mean of bidirectional
measurement)		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Irregularities over fiber
length and point		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10

Dicontinuity
Difference backscatter
coefficient		 dB/km ≤0.05 ≤0.03 ≤0.08 ≤0.10 ≤0.08
Attenuation uniformity dB/km ≤0.01 ≤0.01 　 　 　
Core dimater um 　 　 50+/-1.0 62.5+/-2.5 50+/-1.0
Cladding diameter um 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242+/-6 242+/-6 242+/-6 242+/-6 242+/-6
Coating/chaffinch
concentrically error		 um ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0
Core/cladding conentricity error um ≤0.6 ≤0.6 ≤1.5 ≤1.5 ≤1.5
Curl(radius) um ≤3 ≤3 ---- ---- ----
