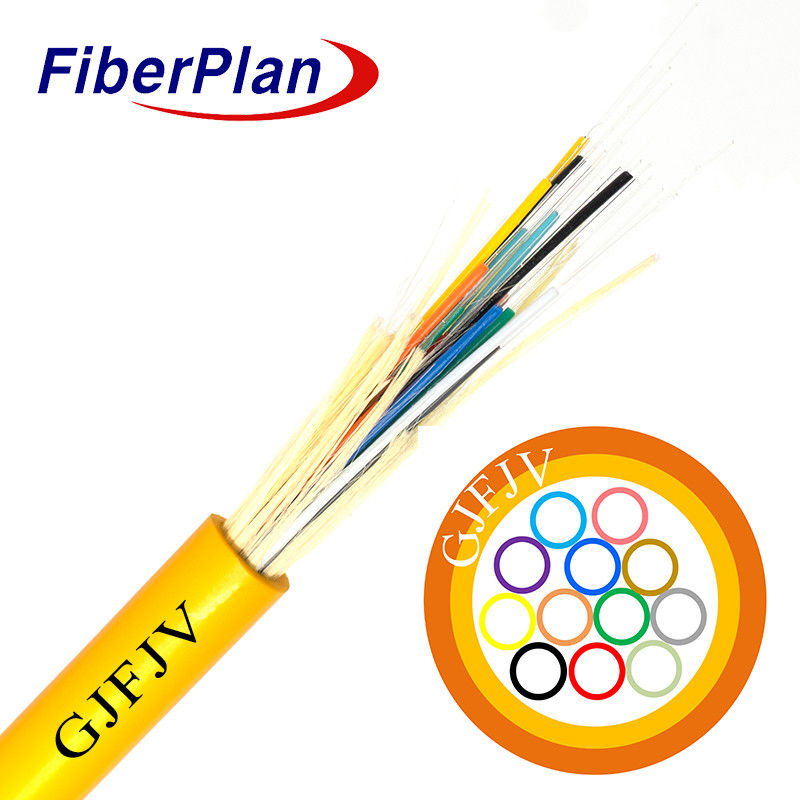

Indoor Ribbon Tight Buffer Distribution G652D Om3 Om4 Fiber Optic Cable GJFJV
Description
This indoor ribbon fiber cable utilizes fiber ribbon(s) for optical communication and reinforces it with a layer of
Dupont aramid yarn as strength members. Finally, the cable is coated with an LSZH (Low Smoke, Zero Halogen,
Flame-retardant) jacket for safety and reduced environmental impact.
Application
1 Designed for indoor distribution purposes.
2 Used as a pigtail for communication equipment.
3 Suitable for various communication equipment applications.
Characteristics
1 High-strength Kevlar yarn member for durability.
2 High-integrated fiber ribbon design for efficiency.
3 Flame-retardant jacket for safety.
Cable construction details
| Fiber count |
24F |
| Yarn |
Material |
Dupont kevlar yarn |
| Out sheath |
Diameter |
3.0*5.0mm |
Thickness |
0.5mm |
| Material |
LSZH |
Color |
Black |
Cable mechanical and environment chararcteristics
| Tensile strength |
Long term(N) |
200N |
| Short term(N) |
400N |
| Crush load |
Long term (N/100mm) |
500N/100mm |
| Short term (N/100mm) |
1000N/100mm |
| Bending radius |
Dynamic (mm) |
20D |
| Static (mm) |
10D |
| Temperature |
-20℃～+70℃ |
Fiber Performance
| Fiber style |
Unit |
SM G652D |
MM 50/125 |
OM3-150 |
| Condition |
mm |
1310/1550 |
850/1300 |
850/1300 |
| Attenuation |
dB/km |
≤0.36/0.23 |
≤3.0/1.0 |
≤3.0/1.0 |
| Cladding diameter |
um |
125±1 |
125±1 |
125±1 |
| Cladding non-circularity |
% |
≤1.0 |
≤1.0 |
≤1.0 |
| Coating diameter |
um |
242±7 |
242±7 |
242±7 |
