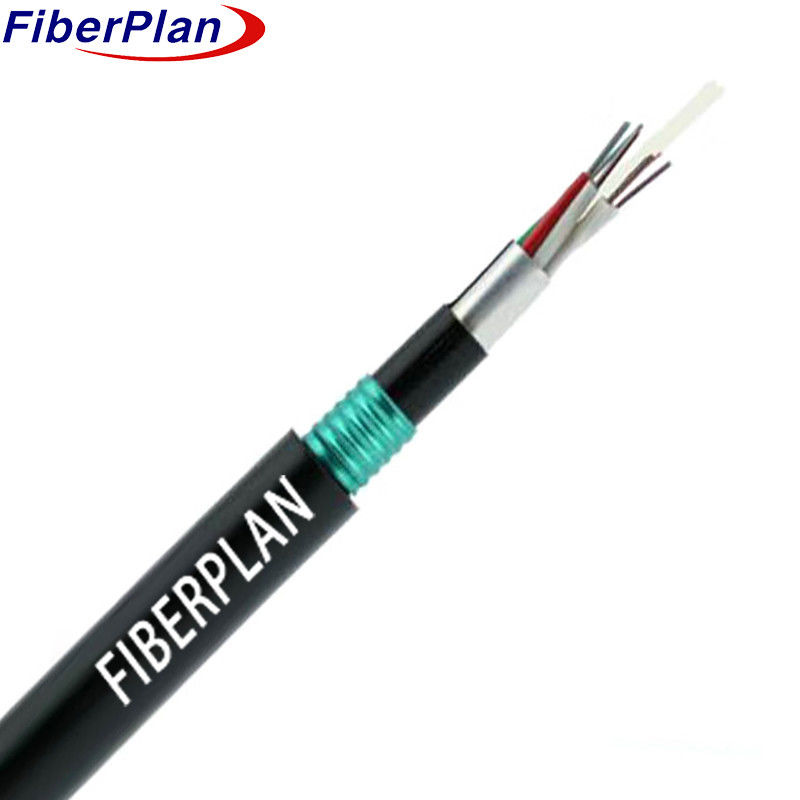

Outdoor Armored Cable High Modulus Plastic Loose Tube GYFTA53
Description
The 250μm fibers are housed in a high modulus plastic loose tube filled with a water-resistant compound.
A non-metallic FRP core serves as the central strength member, around which the tubes and fillers are
stranded to form a compact circular core. An APL layer shields the core from water, followed by a thin PE
inner sheath. Kevlar yarn enhances tensile strength, covered by a PSP layer, and finalized with a PE outer
sheath.
Application
1 Ideal for outdoor deployment, including direct burial installations.
2 Suitable for trunk power transmission systems.
3 Designed for access and local networks in high electromagnetic interference areas.
Characteristic
1 Excellent mechanical and temperature resilience.
2 Specialized tube filling compound ensures vital fiber protection.
3 Balances crush resistance with flexibility.
4 PSP layer enhances moisture resistance for added durability.
Structure details
| NO. of fibers |
6 |
12 |
24 |
48 |
72 |
96 |
144 |
| No. of tubes |
1 |
2 |
4 |
4 |
6 |
8 |
12 |
| fibers per tube |
6 |
6 |
6 |
12 |
12 |
12 |
12 |
| Filler Rod |
5 |
4 |
2 |
2 |
0 |
0 |
0 |
Loose tube diameter
(±0.1mm) |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
Inner sheath diameter
(±0.2mm) |
7.6 |
7.6 |
7.6 |
7.6 |
7.6 |
9.2 |
11.8 |
Outer diameter
(±0.5mm) |
12.2 |
12.2 |
12.2 |
12.2 |
12.2 |
13.8 |
16.5 |
Thickness of out diameter
(±0.1mm) |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.7 |
1.7 |
| Loose tube |
Material |
PBT |
Color |
Standard spectrum |
| Filler rod |
Material |
PP |
Color |
Black |
| Tube filling |
Material |
Filling compound |
| Central strength member |
Material |
FRP |
Diameter |
2.0mm |
| Water blcoking system |
Material |
Water blocking tape / Filling gel |
| Rip cord |
Qty |
2pcs |
Color |
White |
| Inner sheath |
Material |
PE |
Color |
Black |
| Armor |
Material |
Corrugated steel tape |
| Outer sheath |
Material |
PE |
Color |
Black |
Mechanical and environment performance
| Tensile strength |
Long term(N) |
1000N |
| Short term(N) |
3000N |
| Crush load |
Long term |
3000N/100mm |
| Short term |
1000N/100mm |
| Bending radius |
Dynamic |
20D |
| Static |
10D |
| Installation Temperature |
-10℃～+60℃ |
| Storage Temperature |
-40℃～+70℃ |
Fiber characteristics
| Fiber type |
Unit |
SM G652D |
MM 50/125 |
MM 62.5/125 |
| Condition |
mm |
1310/1550 |
850/1300 |
850/1300 |
| Attenuation |
dB/km |
≤0.35/0.20 |
≤3.0/1.5 |
≤3.0/1.5 |
| Cladding diameter |
um |
125±0.3 |
125±0.3 |
125±0.3 |
| Cladding non-circularity |
% |
≤1.0 |
≤1.0 |
≤1.0 |
| Coating diameter |
um |
242±3 |
242±3 |
242±3 |
