| Place of Origin | China |
| Brand Name | Fiberplan |
| Certification | ISO 9001; TÜV certificate |
| Model Number | GYTS |
GYTS Optic Cable Price Underground Fiber Optic Cable
Description
This cable design integrates various protective elements to ensure its durability and functionality. Encased
within a high modulus plastic loose tube, it accommodates both single-mode and multi-mode fibers, safeg-
uarded by a water-resistant filling compound. At the core lies a steel wire, often coated in polyethylene for
higher fiber count variants, serving as the metallic strength member. Surrounding this central component,
the tubes and fillers are meticulously stranded into a compact and circular cable core. Further fortification is
added with a longitudinally applied PSP layer over the cable core, enhancing its resilience against water in-
gress. Completing this robust construction is a PE sheath that encloses the cable, providing additional defense
against environmental factors.
Application
1 Designed for outdoor distribution: This cable is engineered to withstand various outdoor conditions,
ensuring durability and reliability in challenging environments.
2 Versatile installation methods: It's well-suited for aerial installations and can also be laid through pipelines,
offering flexibility in deployment.
3 Long-distance and local area network compatibility: This cable supports both long-distance communication
needs and is suitable for local area networks, catering to diverse communication requirements.
Characteristic
1 Robust mechanical strength and temperature resilience ensure reliability in various conditions.
2 Hydrolysis-resistant, high-strength loose tube provides exceptional durability.
3 Specialized tube filling compound offers critical fiber protection, ensuring reliable performance.
4 Excellent crush resistance and flexibility, suitable for demanding installation scenarios.
5 PE sheath protects against UV radiation, enhancing cable longevity.
6 Various measures ensure watertightness: central steel wire for strength, 100% cable core filling, and PSP
enhancement for moisture resistance.

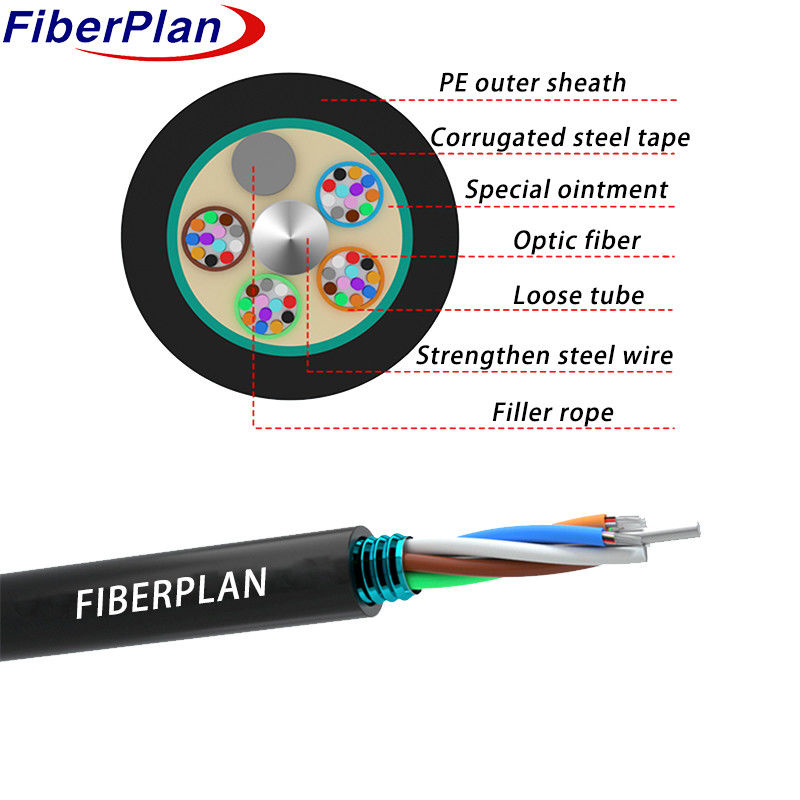

Cable construction details
| Number of fiber | 2~144core | |||||||
| Moisture Barrier | Water blocking system | |||||||
| Central strength member | Material | Steel wire/FRP/FRP with PE cover | ||||||
| size | 1.5mm~2.0mm | |||||||
| Loose tube | material | PBT | ||||||
| diameter | Ф2.2(outer/inner) | |||||||
| Tube-filling | Tube filling compoun | |||||||
| Armoring | Material | Corrugated steel tape | ||||||
| Outer sheath | material | PE,HDPE | ||||||
| diameter | 1.70±0.2mm | |||||||
Fiber color
| Number of fiber per tube 8cores |
1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Grey | White | |
| 7 | 8 | 9 | 10 | 11 | 12 | |
| Red | Black | Yellow | Violet | Pink | Aqua | |
| Color 13~24 will be marked with a black tracer. For black color no need marked black tracer, will use nature color instead. | ||||||
Cable Mechanical characteristic
| core | Cable diameter | weight | |||||
| 2 cores to 60 cores | 10.0±0.3mm | 115±5kg/km | |||||
| 72 cores | 10.5±0.3mm | 120±5kg/km | |||||
| 96 cores | 12.5±0.3mm | 180±5kg/km | |||||
| 144 cores | 14.5±0.3mm | 245±5kg/km | |||||
| Min Bending Radius(mm) | Long term | 10D | |||||
| Min Bending Radius(mm) |
Short term | 20D | |||||
| Min allowable Tensile Strength(N) |
Long term | 600 | |||||
| Min allowable Tensile Strength(N) |
Short term | 1500 | |||||
| Crush Load (N/100mm) | Long term | 300 | |||||
| Crush Load (N/100mm) | short term | 1000 | |||||
| Operation temperature (℃) |
-40+70 | ||||||
| Installation temperature(℃) |
-20+60 | ||||||
Fiber characteristic
| Fiber style | Unit | SM G652 |
SM G652D |
MM 50/125 |
MM 62.5/125 |
MM OM3-300 |
|
| condition | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | ≤ | ≤ | ≤ | ≤3.0/1.0 | ≤3.0/1.0 | |
| 0.36/0.23 | 0.34/0.22 | 3.0/1.0 | ---- | ---- | |||
| Dispresion | 1550nm | Ps/(nm*km) | ---- | ≤18 | ---- | ---- | Dispresion |
| 1625nm | Ps/(nm*km) | ---- | ≤22 | ---- | ---- | ||
| Bandwith | 850nm | MHZ.KM | ---- | ---- | ≧400 | ≧160 | Bandwith |
| 1300nm | MHZ.KM | ---- | ---- | ≧800 | ≧500 | ||
| Zero dispersion wavelength | nm | 1300-1324 | ≧1302, ≤1322 |
---- | ---- | ≧ 1295, ≤1320 |
|
| Zero dispresion slope | nm | ≤0.092 | ≤0.091 | ---- | ---- | ---- | |
| PMD Maximum Individual Fibr | ≤0.2 | ≤0.2 | ---- | ---- | ≤0.11 | ||
| PMD Design Link Value | Ps(nm2*km) | ≤0.12 | ≤0.08 | ---- | ---- | ---- | |
| Fibre cutoff wavelength λc | nm | ≧ 1180, ≤1330 |
≧1180, ≤1330 |
---- | ---- | ---- | |
| Cable sutoff wavelength λcc |
nm | ≤1260 | ≤1260 | ---- | ---- | ---- | |
| MFD | 1310nm | um | 9.2+/-0.4 | 9.2+/-0.4 | ---- | ---- | ---- |
| 1550nm | um | 10.4+/-0.8 | 10.4+/-0.8 | ---- | ---- | ---- | |
| Numerical Aperture(NA) |
---- | ---- | 0.200+/ -0.015 |
0.275+/-0. 015 |
0.200+/-0 .015 |
||
| Step(mean of bidirectional measurement) |
dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| Irregularities over fiber length and point |
dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| Dicontinuity | |||||||
| Difference backscatter coefficient |
dB/km | ≤0.05 | ≤0.03 | ≤0.08 | ≤0.10 | ≤0.08 | |
| Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | ||||
| Core dimater | um | 50+/-1.0 | 62.5+/-2.5 | 50+/-1.0 | |||
| Cladding diameter | um | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | |
| Coating diameter | um | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | |
| Coating/chaffinch concentrically error |
um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | |
| Core/cladding conentricity error | um | ≤0.6 | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 | |
| Curl(radius) | um | ≤4 | ≤4 | ---- | ---- | ---- | |
