2.0mm 3.0mm Double Sheath G652D Duplex Indoor Fiber Optic Cable
  • 2.0mm 3.0mm Double Sheath G652D Duplex Indoor Fiber Optic Cable
2.0mm 3.0mm Double Sheath G652D Duplex Indoor Fiber Optic Cable

2.0mm 3.0mm Double Sheath G652D Duplex Indoor Fiber Optic Cable

Place of Origin China
Brand Name Fiberplan
Certification ISO 9001; TÜV certificate
Model Number GJFJV duplex cable
Product Details
Cable Type:
Duplex
Fiber Diameter:
9/125μm (Single-mode), 50/125μm Or 62.5/125μm (Multi-mode)
Jacket Color:
Yellow/Orange/Aqua
Number Of Fibers:
2
Outer Diameter:
2.0mm/3.0mm/4.0mm
Storage Temperature:
-40°C To +70°C
Tight Buffer Color:
Blue/Orange/Green/Brown/Slate/White/Red/Black/Yellow/Violet/Rose/Aqua
Tight Buffer Diameter:
0.9mm
Tight Buffer Material:
Acrylate
Highlight:

3.0mm Duplex Cable

,

G652D Duplex Cable

,

Duplex Indoor Fiber Optic Cable

Payment & Shipping Terms
Minimum Order Quantity
1Km
Price
Negotiation
Packaging Details
Wooden Drum
Delivery Time
5~8 work days
Payment Terms
L/C, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 km per month
Product Description
2.0mm / 3.0mm Double Sheath G652D Duplex Indoor Fiber Optic Cable

Description
The duplex zipcord cable is designed for optical communication and incorporates key elements for func-
tionality and durability. It utilizes a 900μm tight buffer fiber as the core medium for optical signals. To enh-
ance its strength, aramid yarn is employed as units within the cable. This aramid yarn serves as a robust
support structure, providing resilience against tension and external forces. The cable is then finalized with
a layer of LSZH (Low Smoke Zero Halogen) jacket, serving as the outer sheath. This LSZH jacket offers
flame-retardant properties and emits minimal smoke in the event of a fire, making the cable suitable for
indoor applications where safety and environmental considerations are crucial.

Application

1 Indoor Distribution: Tailored for indoor use, this duplex zipcord cable is designed to facilitate efficient

   communication within buildings.

2 Pigtail Compatibility: The cable is well-suited to function as a pigtail, seamlessly connecting with commun-

   ication equipment for reliable performance.

3 Communication Equipment Compatibility: Specifically crafted to meet the requirements of communication

   equipment, ensuring compatibility and effective service.

4 Convenient Installation: With a design that prioritizes ease of use, this cable can be conveniently installed,

   providing a straightforward setup process for various communication applications.

Characteristic

1 High-Strength Kevlar Yarn Member: The cable features a robust construction with high-strength Kevlar yarn,

   providing durability and resistance to external forces.

2 High-Quality Tight Buffered or Loose Tube: The cable incorporates either high-quality tight buffered or loose

   tube design, ensuring optimal protection for the internal fibers in different environmental conditions.

3 Soft and Easy to Strip: Designed for user convenience, the cable is soft and easy to strip, simplifying the in-

   stallation process and enhancing flexibility during setup.

4 Round Construction: With a round construction, the cable is shaped for practicality, allowing for straightforward

   handling and installation in various applications.

Standards
* The GJFJV cable aligns with multiple standards such as YD/T1258.2-2003, ICEA-596, GR-409, IEC794, and
others. Additionally, it fulfills the criteria set by UL for OFNR (Optical Fiber Nonconductive Riser) approval.

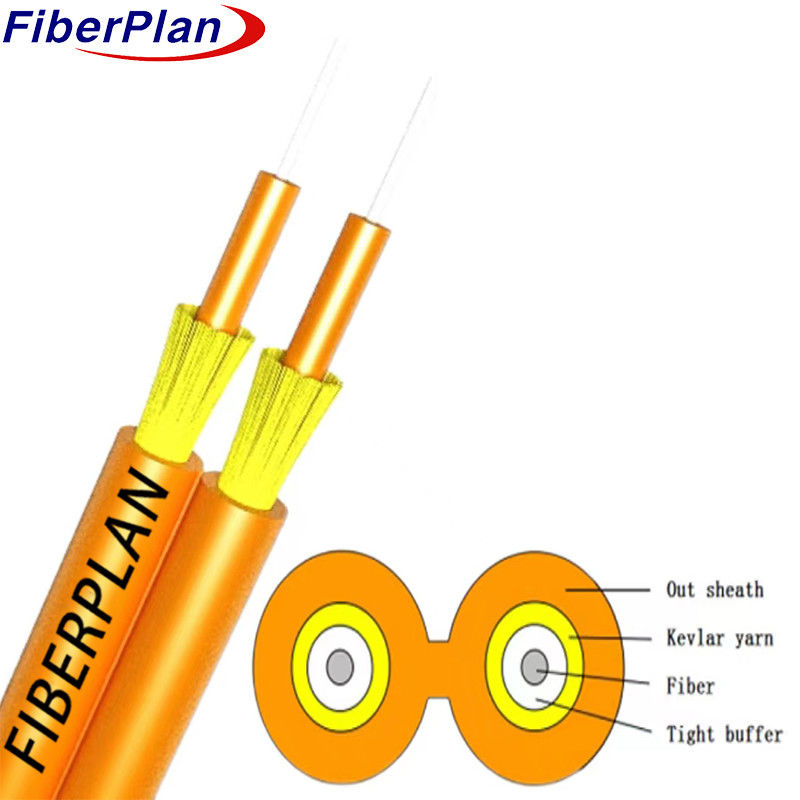

Cable construction details

No. of fiber 2F
SM fiber Fiber type Single mode Concentricity error ≤0.5um
MFD 8.6～9.8um Cladding non-circularity ≤0.7%
Cladding diameter 125±1um Fiber color white and blue
Tight buffer Material PVC Color white
Diameter 0.9±0.05mm Thickness 0.32±0.05mm
Yarn Material Kevlar yarn Color yellow
Type 1000D Qty 3 strands/unit
4 strands/unit
Out sheath Material LSZH Color yellow
Diameter 1.9±0.05mmx3.9±0.1 mm Thickness 0.35±0.05mm
2.9±0.05mmx5.9±0.1 mm 0.45±0.05mm
Gross weight 8.5±2kg/km (2.0mm)
15±3kg/km (3.0mm)



Cable mechanical and environment characteristics

Tensile strength Long term(N) 90 (2.0mm) 120 (3.0mm)
Short term(N) 150 (2.0mm) 225 (3.0mm)
Crush load Long term(N) 100N/100mm
Short term(N) 500N/100mm
Bending radius Dynamic 20D
Static 10D
Temperature -20℃～70℃

2.0mm 3.0mm Double Sheath G652D Duplex Indoor Fiber Optic Cable 02.0mm 3.0mm Double Sheath G652D Duplex Indoor Fiber Optic Cable 1
