Double Armored Double Sheathed Stranded Outdoor Optical Cable GYTA53
Description
The cable construction features optical fibers housed in a high-modulus plastic loose tube filled
with a water-resistant compound. At its core, a steel wire, sometimes sheathed with polyethylene
for high fiber count cables, serves as the metallic strength member. Surrounding this core, tubes
and fillers are stranded to form a compact, circular cable core. The core is fully filled with a
compound to prevent water ingress, followed by the application of a thin PE inner sheath. The
cable is further reinforced with a longitudinally applied PSP layer and completed with a PE outer
sheath to enhance durability and protection against external elements.
Application
* Outdoor Distribution Adaptation: Engineered for outdoor environments, this cable is specifically
designed to withstand environmental challenges, ensuring reliable performance in outdoor
distribution scenarios.
* Versatile Installation Options: Compatible with multiple installation methods including aerial
deployment, duct installation, and direct burial, providing flexibility in infrastructure planning.
* Ideal for Long-Distance and Local Area Network Communication: Engineered to meet the
demands of both long-distance communication and local area network setups, ensuring
effective and efficient data transmission over varying distances.
Characteristic
* Robust Mechanical and Temperature Performance: Ensures reliable functionality under diverse
mechanical stresses and temperature conditions.
* Hydrolysis-Resistant High-Strength Loose Tube: Features a high-strength loose tube resistant
to hydrolysis, ensuring prolonged cable durability.
* Specialized Tube Filling Compound for Fiber Protection: Utilizes a specialized filling compound
within the tube to provide essential protection to the optical fibers.
* Crush Resistance and Flexibility: Balances crush resistance with flexibility, facilitating versatile
installations in various environments.
* Watertight Design Measures:
- Central Strength Member: Utilizes a steel wire as the central strength member.
- Cable Core Filling: Ensures complete filling of the cable core with a compound to enhance
watertight integrity.
- APL Moisture Barrier: Applies an Aluminum Polyethylene Laminate (APL) as a moisture barrier.
- PSP Moisture-Proofing: Applies Polyethylene (PSP) longitudinally to enhance moisture-proofing.
- Water-Blocking Material: Incorporates water-blocking materials to further ensure protection
against water ingress.

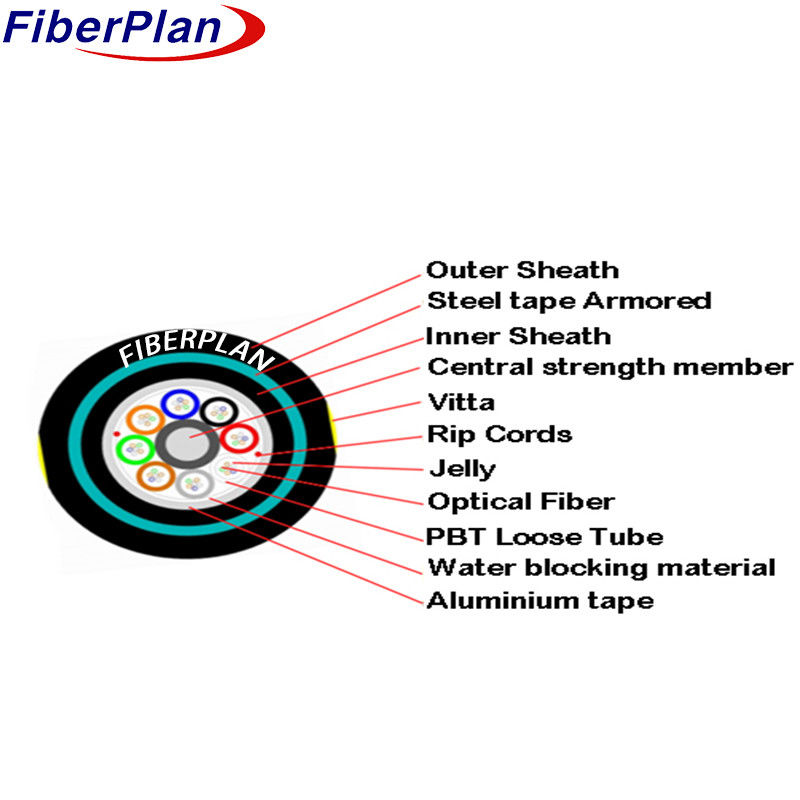

Cable construction details
Number of fiber | 12-144core | |||||||
Filling rope | 4-0 | |||||||
Moisture Barrier | Water blocking system | |||||||
Central strength member | material | Steel wire/FRP | ||||||
size | 1.3mm | |||||||
Tube-filling | Tube filling compound | |||||||
Inner sheath | material | PE/HDPE | ||||||
diameter | 2.0mm | |||||||
Loose tube | material | PBT | ||||||
diameter | Ф2.2(outer/inner) | |||||||
Inner armored | material | Aluminium tape | ||||||
Outer armored | material | Corrugated steel tape | ||||||
Outer sheath | material | PE/HDPE | ||||||
diameter | 1.7±0.1mm |
Fiber color
Number of fiber 8 cores per tube | 1 | 2 | 3 | 4 | 5 | 6 |
Blue | Orange | Green | Brown | Grey | White | |
7 | 8 | 9 | 10 | 11 | 12 | |
Red | Black | Yellow | Violet | Pink | Aqua | |
Color 13~24 will be marked with a black tracer. For black color no need marked black tracer, will use nature color instead. |
Cable Mechanical characteristic
core | Cable diameter | weight | |||||
24 core to 42core | 14.0±0.4mm | 150±4kg/km | |||||
48core | 14.0±0.4mm | 200±4kg/km | |||||
60core | 14.0±0.4mm | 205±4kg/km | |||||
72cores | 15.5±0.4mm | 210±4kg/km | |||||
96cores | 17.1±0.4mm | 270±4kg/km | |||||
144cores | 20.3±0.4mm | 310±4kg/km | |||||
Min Bending Radius(mm) | Long term | 10D | |||||
Min Bending Radius(mm) | Short term | 20D | |||||
Min allowable Tensile Strength(N) | Long term | 3000 | |||||
Min allowable Tensile Strength(N) | Short term | 4000 | |||||
Min. Allowable Crush Load (N/100mm) | Long term | 1000 | |||||
Min. Allowable Crush Load (N/100mm) | short term | 3000 | |||||
Operation temperature (℃) | -40 ~ +70 | ||||||
Installation temperature(℃) | -15 ~ +60 |
Fiber characteristic
|
