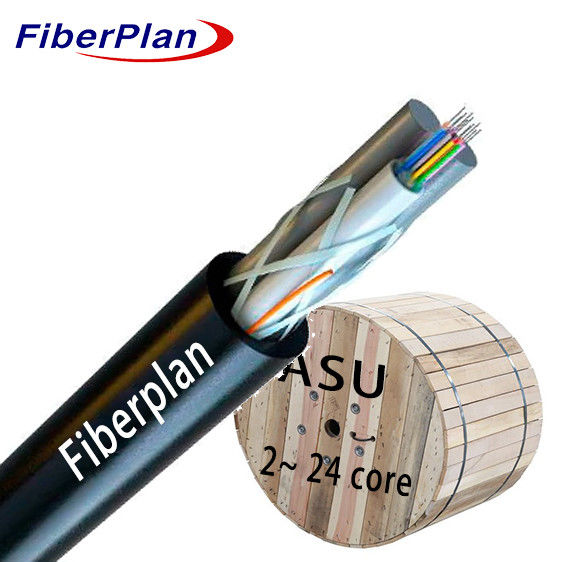

Outdoor Aerial Single Sheath Mini Adss ASU Fiber Optic Cable
Description
This ASU Fiber Optic Cable stands out as a sought-after solution within FTTH optical networks, primarily for
its thoughtfully engineered flat design. Sporting a G.652D type fiber optic cable, it not only guarantees high-
performance data transmission but also offers remarkable ease of installation. Its design isn't just about fun-
ctionality—it's also about cost-effectiveness. With lower installation and maintenance costs, it maintains the
balance between reliability and economic feasibility. Structurally, it houses a non-core SM optical fiber rope
protected by a secure loose tube. Furthermore, it incorporates two specifically crafted components that sim-
plify the anchoring and suspension of the rope, amplifying its resilience and stability within the intricate netw-
ork configuration.
Application
1 Outdoor Distribution Adaptation: Tailored for deployment in outdoor environments, indicating resilience and
suitability for diverse weather conditions and external factors.
3 Trunk Power Transmission Compatibility: Capable of handling the demands of trunk power transmission
systems, suggesting robustness and efficiency in managing high-power transmissions within extensive
networks.
4 High Electromagnetic Interference Adaptability: Suited for access and local networks in locations with high
electromagnetic interference, implying the capability to minimize susceptibility to interference and maintain
stable communication even in challenging electromagnetic environments.
Characteristic
1 Robust Mechanical & Temperature Performance: Reliable functionality across temperature ranges and
mechanical stress levels for consistent operation.
2 Hydrolysis-Resistant High-Strength Loose Tube: Durable tube structure resistant to hydrolysis, ensuring
longevity even in moisture-prone 3 Specialized.
3 Fiber Protection: Dedicated tube filling compound shields fibers, ensuring essential protection for their
longevity.
4 Crush Resistance & Flexibility: Balanced strength against pressure with flexibility, ideal for versatile installations.
5 Loose Tube Filling Compound: Enhances the loose tube's protective qualities, fortifying the cable against
environmental factors.
6 100% Cable Core Filling: Complete filling of the cable core ensures comprehensive protection, safeguarding
against various external elements for long-term.
Cable construction details
| Number of fiber |
2-12core |
| Moisture Barrier |
Water blocking Tape |
| Loose tube and Filler elements |
material |
PBT |
| diameter |
2.2mmФ±0.1mm |
| Central strength member |
material |
FRP |
| size |
2.0mm±0.2mm |
| Span |
50m~150m |
| Overall cable diameter |
8.0mm±0.5mm |
| Loose tube |
material |
PBT |
| diameter |
Ф2.2(outer/inner) |
| Outer sheath |
material |
PE |
| diameter |
1.8±0.2mm |
| Cable weight per km |
60kg/km |
Fiber color
|
Number of fiber
12 cores per tube
|
1 |
2 |
3 |
4 |
5 |
6 |
| Blue |
Orange |
Green |
Brown |
Grey |
White |
| 7 |
8 |
9 |
10 |
11 |
12 |
| Red |
Black |
Yellow |
Violet |
Pink |
Aqua |
| Color 13~24 will be marked with a black tracer.For black color no need marked black tracer, will use nature color instead. |
Cable Mechanical characteristic
| Items |
Description |
| Installation temperature(℃) |
-15 ~ +60 |
| Operation temperature (℃) |
-40 ~ +70 |
| Min Bending Radius(mm |
Long term |
10D |
| short term |
20D |
| Allowable Tensile Strength(N) |
Long term |
600 |
| short term |
1500 |
| Crush Load(N/100mm) |
Long term |
300 |
| short term |
1000 |
Fiber characteristic
| Fiber style |
Unit |
SM
G652 |
SM
G652D |
MM
50/125 |
MM
62.5/125 |
MM
OM3-300 |
| condition |
nm |
1310/1550 |
1310/1550 |
850/1300 |
850/1300 |
850/1300 |
| attenuation |
dB/km |
≤ |
≤ |
≤ |
≤3.0/1.0 |
≤3.0/1.0 |
| 0.36/0.23 |
0.34/0.22 |
3.0/1.0 |
---- |
---- |
| Dispresion |
1550nm |
Ps/(nm*km) |
---- |
≤18 |
---- |
---- |
Dispresion |
| 1625nm |
Ps/(nm*km) |
---- |
≤22 |
---- |
---- |
|
| Bandwith |
850nm |
MHZ.KM |
---- |
---- |
≧400 |
≧160 |
Bandwith |
| 1300nm |
MHZ.KM |
---- |
---- |
≧800 |
≧500 |
|
| Zero dispersion wavelength |
nm |
1300-1324 |
≧1302,
≤1322 |
---- |
---- |
≧ 1295,
≤1320 |
| Zero dispresion slope |
nm |
≤0.092 |
≤0.091 |
---- |
---- |
---- |
| PMD Maximum Individual Fibr |
|
≤0.2 |
≤0.2 |
---- |
---- |
≤0.11 |
| PMD Design Link Value |
Ps(nm2*k
m) |
≤0.12 |
≤0.08 |
---- |
---- |
---- |
| Fibre cutoff wavelength λc |
nm |
≧ 1180,
≤1330 |
≧1180,
≤1330 |
---- |
---- |
---- |
Cable sutoff
wavelength λcc |
nm |
≤1260 |
≤1260 |
---- |
---- |
---- |
| MFD |
1310nm |
um |
9.2±0.3 |
9.2±0.3 |
---- |
---- |
---- |
| 1550nm |
um |
10.4±0.5 |
10.4±0.5 |
---- |
---- |
---- |
Numerical
Aperture(NA) |
|
---- |
---- |
0.200±0.015 |
0.275±0.
015 |
0.200±0
.015 |
Step(mean of bidirectional
measurement) |
dB |
≤0.05 |
≤0.05 |
≤0.10 |
≤0.10 |
≤0.10 |
Irregularities over fiber
length and point |
dB |
≤0.05 |
≤0.05 |
≤0.10 |
≤0.10 |
≤0.10 |
| Dicontinuity |
Difference backscatter
coefficient |
dB/km |
≤0.05 |
≤0.03 |
≤0.08 |
≤0.10 |
≤0.08 |
| Attenuation uniformity |
dB/km |
≤0.01 |
≤0.01 |
|
|
|
| Core dimater |
um |
|
|
50±1.0 |
62.5±2.5 |
50±1.0 |
| Cladding diameter |
um |
125.0±0.1 |
125.0±0.1 |
125.0±0.1 |
125.0±0.1 |
125.0±0.1 |
| Cladding non-circularity |
% |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
| Coating diameter |
um |
242±7 |
242±7 |
242±7 |
242±7 |
242±7 |
Coating/chaffinch
concentrically error |
um |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
| Coating non circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
| Core/cladding conentricity error |
um |
≤0.6 |
≤0.6 |
≤1.5 |
≤1.5 |
≤1.5 |
| Curl(radius) |
um |
≤4 |
≤4 |
---- |
---- |
---- |
