Outdoor Fiber Optic Cable
>
|
|
| Place of Origin | China |
| Brand Name | Fiberplan |
| Certification | ISO 9001; TÜV certificate |
| Model Number | ADSS |
Outdoor Use ADSS Cable With Hydrolysis-Resistant Loose Tubes & FRP Strength Member
Description
High modulus plastic tubes housing the fibers, which are filled with a water-resistant compound. Surrounding
this, there's Kevlar for added protection, with a water-blocking material maintaining the waterproof and compact
structure between the Kevlar yarn and the loose tube. Finally, the whole setup is encased in a sturdy polyet-
hylene (PE) sheath for defense against external elements.
Application
That specification outlines the fundamental criteria for single jacket ADSS (All-Dielectric Self-Supporting) cables
intended for aerial or duct installations.
Characteristics
1 Exceptional mechanical durability and ability to withstand extreme temperatures.
2 Hydrolysis-resistant high-strength loose tubes.
3 Specialized compound within tubes for essential fiber protection.
4 Balanced crush resistance and flexibility.
5 Dual reinforcement with FRP and aramid yarns for increased tensile strength.
6 Engineered for user convenience with a compact, lightweight design for easy installation.

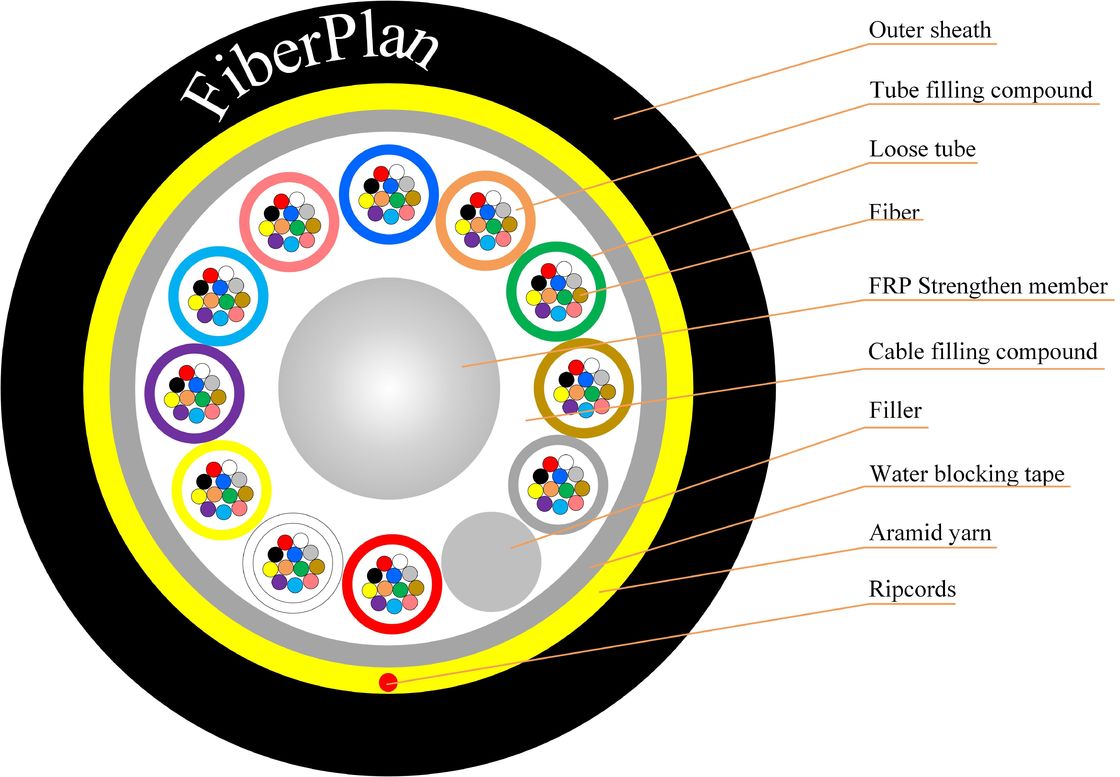

Cable construction details
| Number of fiber | 2-144core | |||||||
| Moisture Barrier | Water blocking Tape | |||||||
| Loose tube and Filler elements | material | PBT | ||||||
| diameter | 2.2mmФ±0.1mm | |||||||
| Central strength member | material | FRP | ||||||
| size | 2.0mm±0.1mm | |||||||
| Yarn | Dupont Kelver yarn ( 6pcs) | |||||||
| Span | 50m~150m | |||||||
| Overall cable diameter | 15.0mm±0.3mm | |||||||
| Loose tube | material | PBT | ||||||
| diameter | Ф2.2(outer/inner) | |||||||
| Cable weight per km | 95kg/km | |||||||
| Outer sheath | material | PE | ||||||
| diameter | 1.8±0.1mm | |||||||
| Cable weight per km | 95kg/km | |||||||
Fiber color
|
Number of fiber 12 cores per tube |
1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Grey | White | |
| 7 | 8 | 9 | 10 | 11 | 12 | |
| Red | Black | Yellow | Violet | Pink | Aqua | |
| Color 13~24 will be marked with a black tracer.For black color no need marked black tracer, will use nature color instead. | ||||||
Cable Mechanical characteristic
| Items | Description | ||||||
| Installation temperature(℃) | -15 ~ +60 | ||||||
| Operation temperature (℃) | -40 ~ +70 | ||||||
| Min Bending Radius(mm | Long term | 10D | |||||
| short term | 20D | ||||||
| Allowable Tensile Strength(N) | Long term | 600 | |||||
| short term | 1500 | ||||||
| Crush Load(N/100mm) | Long term | 300 | |||||
| short term | 1000 | ||||||
Fiber characteristic
| Fiber style | Unit | SM G652 |
SM G652D |
MM 50/125 |
MM 62.5/125 |
MM OM3-300 |
|
| condition | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | ≤ | ≤ | ≤ | ≤3.0/1.0 | ≤3.0/1.0 | |
| 0.36/0.23 | 0.34/0.22 | 3.0/1.0 | ---- | ---- | |||
| Dispresion | 1550nm | Ps/(nm*km) | ---- | ≤18 | ---- | ---- | Dispresion |
| 1625nm | Ps/(nm*km) | ---- | ≤22 | ---- | ---- | ||
| Bandwith | 850nm | MHZ.KM | ---- | ---- | ≧400 | ≧160 | Bandwith |
| 1300nm | MHZ.KM | ---- | ---- | ≧800 | ≧500 | ||
| Zero dispersion wavelength | nm | 1300-1324 | ≧1302, ≤1322 |
---- | ---- | ≧ 1295, ≤1320 |
|
| Zero dispresion slope | nm | ≤0.092 | ≤0.091 | ---- | ---- | ---- | |
| PMD Maximum Individual Fibr | ≤0.2 | ≤0.2 | ---- | ---- | ≤0.11 | ||
| PMD Design Link Value | Ps(nm2*km) | ≤0.12 | ≤0.08 | ---- | ---- | ---- | |
| Fibre cutoff wavelength λc | nm | ≧ 1180, ≤1330 |
≧1180, ≤1330 |
---- | ---- | ---- | |
| Cable sutoff wavelength λcc |
nm | ≤1260 | ≤1260 | ---- | ---- | ---- | |
| MFD | 1310nm | um | 9.2±0.4 | 9.2±0.4 | ---- | ---- | ---- |
| 1550nm | um | 10.4±0.8 | 10.4±0.8 | ---- | ---- | ---- | |
| Numerical Aperture(NA) | ---- | ---- | 0.200±0.010 | 0.275±0.010 | 0.200±0.010 | ||
| Step(mean of bidirectional measurement) |
dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| Irregularities over fiber length and point |
dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| Dicontinuity | |||||||
| Difference backscatter coefficient |
dB/km | ≤0.05 | ≤0.03 | ≤0.08 | ≤0.10 | ≤0.08 | |
| Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | ||||
| Core dimater | um | 50±0.8 | 62.5±2.3 | 50±0.8 | |||
| Cladding diameter | um | 125.0±0.2 | 125.0±0.2 | 125.0±0.2 | 125.0±0.2 | 125.0±0.2 | |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | |
| Coating diameter | um | 242±6 | 242±6 | 242±6 | 242±6 | 242±6 | |
| Coating/chaffinch concentrically error |
um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | |
| Core/cladding conentricity error | um | ≤0.6 | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 | |
| Curl(radius) | um | ≤4 | ≤4 | ---- | ---- | ---- | |
