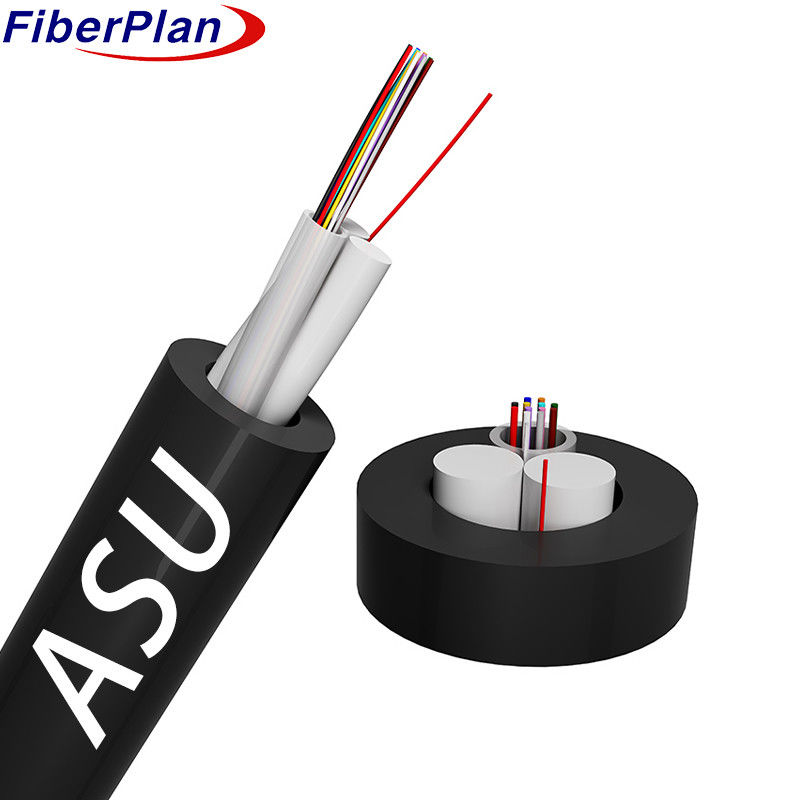

Fiberplan Outdoor Aerial Single Sheath ASU Self Supporting Fiber Optic Cable
Description
The ASU Fiber Optic Cable is highly sought-after in FTTH (Fiber to the Home) optical networks due to its
engineered flat design. It features a G.652D type fiber optic cable, using Corning fiber and YOFC fiber,
ensuring high-performance data transmission and easy installation. Its design prioritizes cost-effectiveness
by reducing installation and maintenance costs while maintaining reliability. Structurally, it includes a
non-core single-mode optical fiber rope protected by a secure loose tube. Additionally, two specially
crafted components simplify anchoring and suspension, enhancing resilience and stability in complex
network configurations.
Application
1.Adapted for Outdoor Distribution: Designed for outdoor deployment, showcasing resilience and
suitability for various weather conditions and external factors.
2.Trunk Power Transmission Compatible: Capable of managing trunk power transmission systems,
indicating robustness and efficiency in handling high-power transmissions within extensive networks.
3.High Electromagnetic Interference Adaptability: Suited for access and local networks in areas with
high electromagnetic interference, demonstrating the ability to minimize susceptibility to interference
and maintain stable communication in challenging electromagnetic environments.
Characteristic
1.Robust Mechanical & Temperature Performance: Ensures reliable functionality across temperature
ranges and mechanical stress levels for consistent operation.
2.Hydrolysis-Resistant High-Strength Loose Tube: Durable tube structure resistant to hydrolysis,
ensuring longevity even in moisture-prone environments.
3.Specialized Fiber Protection: Dedicated tube filling compound shields fibers, ensuring essential
protection for their longevity.
4.Crush Resistance & Flexibility: Balances strength against pressure with flexibility, ideal for versatile
installations.
5.Enhanced Loose Tube Protection: Loose tube filling compound fortifies the cable against
environmental factors.
6.Comprehensive Core Protection: Complete filling of the cable core ensures comprehensive
protection, safeguarding against various external elements for long-term durability.
Cable construction details
| Number of fiber |
2-12core |
| Moisture Barrier |
Water blocking Tape |
| Loose tube and Filler elements |
material |
PBT |
| diameter |
2.2mmФ±0.1mm |
| Central strength member |
material |
FRP |
| size |
2.0mm±0.2mm |
| Span |
50m~150m |
| Overall cable diameter |
8.0mm±0.5mm |
| Loose tube |
material |
PBT |
| diameter |
Ф2.2(outer/inner) |
| Outer sheath |
material |
PE |
| diameter |
1.8±0.2mm |
| Cable weight per km |
60kg/km |
Fiber color
|
Number of fiber
12 cores per tube
|
1 |
2 |
3 |
4 |
5 |
6 |
| Blue |
Orange |
Green |
Brown |
Grey |
White |
| 7 |
8 |
9 |
10 |
11 |
12 |
| Red |
Black |
Yellow |
Violet |
Pink |
Aqua |
| Color 13~24 will be marked with a black tracer.For black color no need marked black tracer, will use nature color instead. |
Cable Mechanical characteristic
| Items |
Description |
| Installation temperature(℃) |
-15 ~ +60 |
| Operation temperature (℃) |
-40 ~ +70 |
| Min Bending Radius(mm |
Long term |
10D |
| short term |
20D |
| Allowable Tensile Strength(N) |
Long term |
600 |
| short term |
1500 |
| Crush Load(N/100mm) |
Long term |
300 |
| short term |
1000 |
Fiber characteristic
| Fiber style |
Unit |
SM
G652 |
SM
G652D |
MM
50/125 |
MM
62.5/125 |
MM
OM3-300 |
| condition |
nm |
1310/1550 |
1310/1550 |
850/1300 |
850/1300 |
850/1300 |
| attenuation |
dB/km |
≤ |
≤ |
≤ |
≤3.0/1.0 |
≤3.0/1.0 |
| 0.36/0.23 |
0.34/0.22 |
3.0/1.0 |
---- |
---- |
| Dispresion |
1550nm |
Ps/(nm*km) |
---- |
≤18 |
---- |
---- |
Dispresion |
| 1625nm |
Ps/(nm*km) |
---- |
≤22 |
---- |
---- |
|
| Bandwith |
850nm |
MHZ.KM |
---- |
---- |
≧400 |
≧160 |
Bandwith |
| 1300nm |
MHZ.KM |
---- |
---- |
≧800 |
≧500 |
|
| Zero dispersion wavelength |
nm |
1300-1324 |
≧1302,
≤1322 |
---- |
---- |
≧ 1295,
≤1320 |
| Zero dispresion slope |
nm |
≤0.092 |
≤0.091 |
---- |
---- |
---- |
| PMD Maximum Individual Fibr |
|
≤0.2 |
≤0.2 |
---- |
---- |
≤0.11 |
| PMD Design Link Value |
Ps(nm2*k
m) |
≤0.12 |
≤0.08 |
---- |
---- |
---- |
| Fibre cutoff wavelength λc |
nm |
≧ 1180,
≤1330 |
≧1180,
≤1330 |
---- |
---- |
---- |
Cable sutoff
wavelength λcc |
nm |
≤1260 |
≤1260 |
---- |
---- |
---- |
| MFD |
1310nm |
um |
9.2±0.3 |
9.2±0.3 |
---- |
---- |
---- |
| 1550nm |
um |
10.4±0.5 |
10.4±0.5 |
---- |
---- |
---- |
Numerical
Aperture(NA) |
|
---- |
---- |
0.200±0.015 |
0.275±0.
015 |
0.200±0
.015 |
Step(mean of bidirectional
measurement) |
dB |
≤0.05 |
≤0.05 |
≤0.10 |
≤0.10 |
≤0.10 |
Irregularities over fiber
length and point |
dB |
≤0.05 |
≤0.05 |
≤0.10 |
≤0.10 |
≤0.10 |
| Dicontinuity |
Difference backscatter
coefficient |
dB/km |
≤0.05 |
≤0.03 |
≤0.08 |
≤0.10 |
≤0.08 |
| Attenuation uniformity |
dB/km |
≤0.01 |
≤0.01 |
|
|
|
| Core dimater |
um |
|
|
50±1.0 |
62.5±2.5 |
50±1.0 |
| Cladding diameter |
um |
125.0±0.1 |
125.0±0.1 |
125.0±0.1 |
125.0±0.1 |
125.0±0.1 |
| Cladding non-circularity |
% |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
| Coating diameter |
um |
242±7 |
242±7 |
242±7 |
242±7 |
242±7 |
Coating/chaffinch
concentrically error |
um |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
| Coating non circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
| Core/cladding conentricity error |
um |
≤0.6 |
≤0.6 |
≤1.5 |
≤1.5 |
≤1.5 |
| Curl(radius) |
um |
≤4 |
≤4 |
---- |
---- |
---- |
