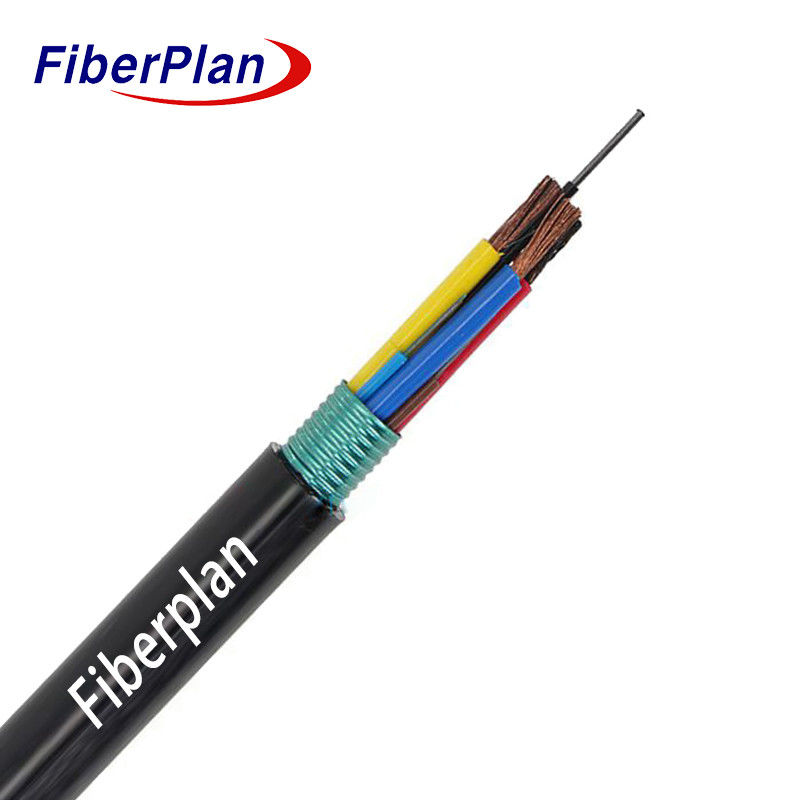

Hybrid Fiber Optic Cable For Outdoor Distribution
Description
The Photoelectric Composite Fiber Optic Cable, known as the Hybrid Fiber Optic Cable, consolidates fiber
and power transmission within a single assembly, eliminating the need for additional wiring. This integration
minimizes construction and network expenses significantly. GDVV seamlessly merges optical transmission
with a power copper cable, addressing challenges related to broadband access, equipment power supply,
transparent electricity meter data transmission, reporting, and billing.
Application
1 Specially designed for outdoor distribution: Built to withstand harsh outdoor conditions, ensuring long-
lasting reliability.
2 Well-suited for trunk power transmission systems: Tailored for efficient long-distance power transmission
needs.
3 Perfect for security monitoring projects: Specifically crafted for surveillance and monitoring applications,
ensuring dependable connectivity and data transmission.
Characteristics
1 Composite cable for combined electricity and signal transmission: Optimizes centralized monitoring and
maintenance, simplifying equipment power management.
2 Streamlined power supply coordination and maintenance: Aims to simplify the management of power supply
systems, reducing complexities and efforts.
3 Enhanced UV protection with PE sheath: The PE sheath ensures exceptional UV protection, bolstering the
cable's durability in outdoor environments.
Structure details
| SM fiber | G652D | ||||||
| Fiber type | G652D | Concentricity error | ≤1um | ||||
| MFD | 8.7～9.7um | Cladding non-circularity | ≤2% | ||||
| Cladding diameter | 125±2um | Fiber color | standard spectrum | ||||
| Loose tube | Material | PBT | Color | Standard spectrum | |||
| Qty | 4 (24F) | Fiber pre tube | 6 (24F) | ||||
| 6 (72F) | 12 (72F) | ||||||
| Copper wire | Qty | 0.6mm2*2 | |||||
| Central strength member | Material | FRP | Diameter | 2.0mm | |||
| Water blcoking system | Material | Water blocking tape | |||||
| Outer sheath | Material | PE | Color | Black | |||
| Diameter | 9.2±0.2mm (24F) | Thickness | 1.6±0.1mm | ||||
| 10.8±0.2mm (72F) | |||||||
Mechanical and environment performance
| Tensile strength | Long term(N) | 600N | |||||
| Short term(N) | 1500N | ||||||
| Crush load | Long term | 300N/100mm | |||||
| Short term | 1000N/100mm | ||||||
| Bending radius | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Operating Temperature | -20℃～+70℃ | ||||||
Fiber Performance
| Fiber attenuation | 1310um | ≤0.36dB/km | |||||
| 1550um | ≤0.24dB/km | ||||||
