Composite Fiber Cable
>
|
| Place of Origin | China |
| Brand Name | Fiberplan |
| Certification | ISO 9001; TÜV certificate |
| Model Number | GDTS |

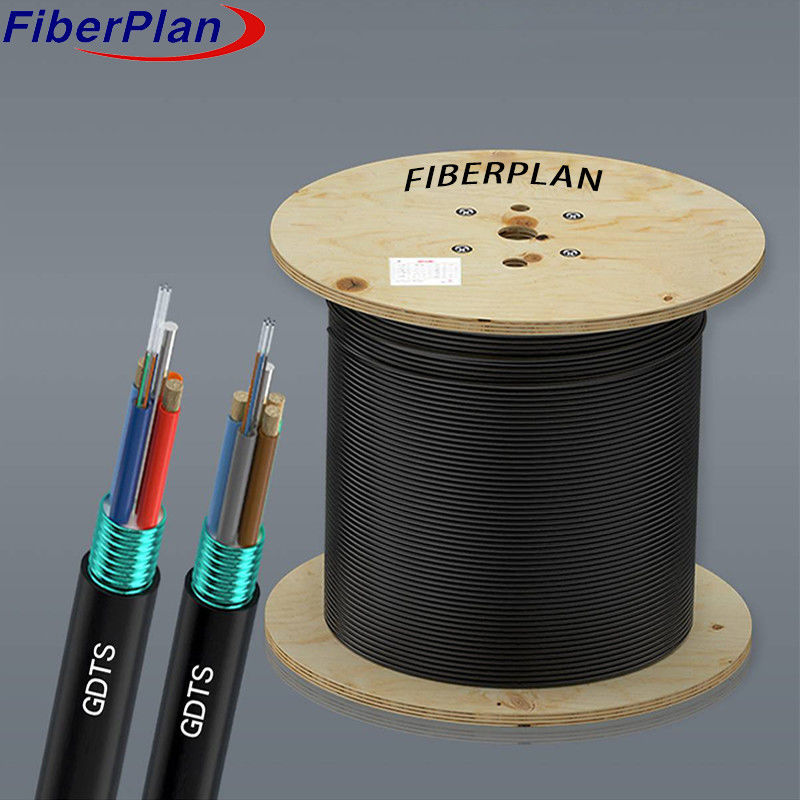

Hybrid Fiber Optic Cable For Efficient Data And Power Transmission
Description
The Photoelectric Composite Fiber Optic Cable, also recognized as a Hybrid Fiber Optic Cable (GDVV),
integrates both fiber and power transmission functionalities into a single unit. This integration eliminates
the necessity for secondary wiring, leading to a substantial reduction in construction, network deployment,
and associated fees. GDVV seamlessly combines optical transmission with a power copper cable, effecti-
vely addressing challenges related to broadband access, equipment power supply, and transparent trans-
mission of electricity meter data. This solution provides a comprehensive approach, efficiently resolving
issues in reporting and charging electricity consumption, making it a versatile and practical solution for var-
ious applications.
Application
1 Engineered for Durability in Challenging Outdoor Conditions: Crafted to withstand harsh outdoor conditions,
ensuring longevity and unwavering reliability.
2 Optimal for Efficient Power Transmission Over Long Distances: Excellently suited for the efficient transmis-
sion of power over extended distances, making it an excellent choice for trunk power systems.
3 Precision-Designed for Security Monitoring Applications: Meticulously crafted to meet the unique requireme-
nts of security monitoring applications, ensuring dependable connectivity and seamless data transmission in
surveillance projects.
Characteristics
* Streamlines Centralized Monitoring and Maintenance: Facilitates centralized monitoring and maintenance,
optimizing equipment power management.
* Simplifies Power Supply System Management: Reduces complexities and efforts associated with coordin-
ation and maintenance in power supply system management.
* Excellent UV Protection with PE Sheath: The PE sheath provides outstanding UV protection, ensuring the
cable's resilience in outdoor settings.
Structure details
| SM fiber | G652D | ||||||
| Fiber type | G652D | Concentricity error | ≤1um | ||||
| MFD | 8.7～9.7um | Cladding non-circularity | ≤2% | ||||
| Cladding diameter | 125±2um | Fiber color | standard spectrum | ||||
| Loose tube | Material | PBT | Color | Standard spectrum | |||
| Qty | 4 (24F) | Fiber pre tube | 6 (24F) | ||||
| 6 (72F) | 12 (72F) | ||||||
| Copper wire | Qty | 0.6mm2*2 | |||||
| Central strength member | Material | FRP | Diameter | 2.0mm | |||
| Water blcoking system | Material | Water blocking tape | |||||
| Outer sheath | Material | PE | Color | Black | |||
| Diameter | 9.2±0.1mm (24F) | Thickness | 1.8±0.1mm | ||||
| 10.5±0.1mm (72F) | |||||||
Mechanical and environment performance
| Tensile strength | Long term(N) | 600N | |||||
| Short term(N) | 1500N | ||||||
| Crush load | Long term | 300N/100mm | |||||
| Short term | 1000N/100mm | ||||||
| Bending radius | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Operating Temperature | -20℃～+70℃ | ||||||
Fiber Performance
| Fiber attenuation | 1310um | ≤0.36dB/km | |||||
| 1550um | ≤0.24dB/km | ||||||
