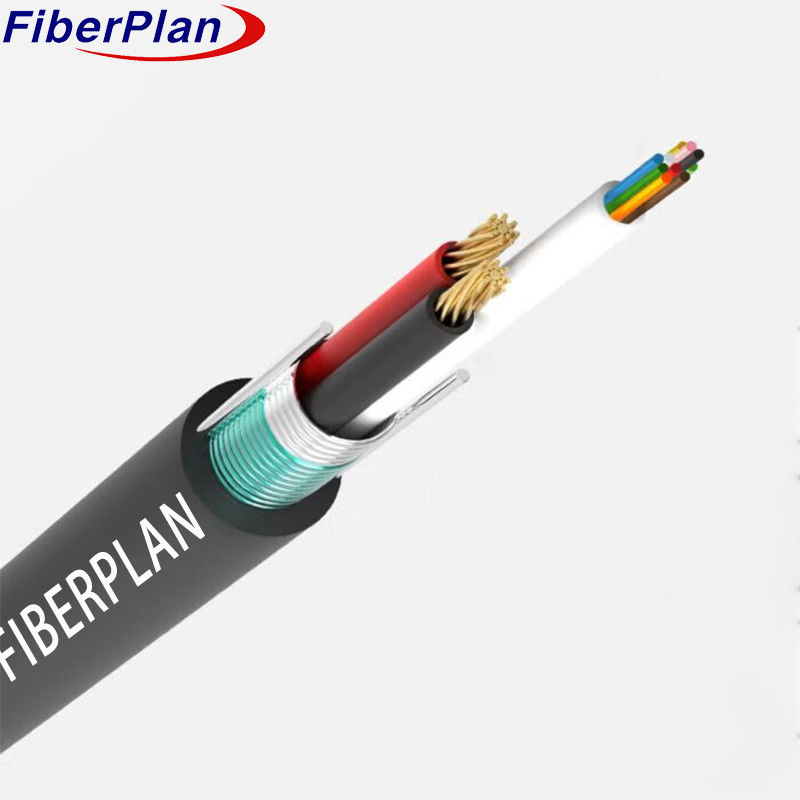

Steel Armored Photoelectric Composite Fiber Optic Cable
Description
The Photoelectric Composite Fiber Optic Cable, also known as a Hybrid Fiber Optic Cable, combines fiber
optic and power transmission functionalities within a single cable assembly. This integrated design elimina-
tes the need for secondary wiring, leading to cost savings in construction and network deployment. The G-
DVV cable integrates optical transmission with power copper cables, addressing issues related to broadba-
nd access, equipment power supply, and transparent transmission of electricity meter data. This solution
facilitates efficient reporting and charging of electricity consumption, offering a comprehensive and streamli-
ned approach to cable infrastructure.
Application
* Tailored for Outdoor Distribution: Engineered to withstand harsh outdoor conditions, this cable is designed
for longevity and reliability in challenging environments.
* Suitable for Trunk Power Transmission Systems: Well-adapted for efficient long-distance power transmission,
making it an ideal choice for trunk power systems.
* Ideal for Security Monitoring Projects: Specifically designed for security monitoring applications, ensuring
dependable connectivity and data transmission in surveillance projects.
Characteristics
* Composite Cable for Electricity and Signal Transmission: Facilitates centralized monitoring and mainten-
ance, optimizing the management of equipment power.
* Minimization of Power Supply Coordination and Maintenance: Simplifies power supply system manage-
ment, reducing complexities and efforts associated with coordination and maintenance.
* Superior Ultraviolet Protection with PE Sheath: The PE sheath provides excellent UV protection, ensuring
the cable's durability in outdoor settings.
Structure details
| SM fiber | G652D | ||||||
| Fiber type | G652D | Concentricity error | ≤1um | ||||
| MFD | 8.7～9.7um | Cladding non-circularity | ≤2% | ||||
| Cladding diameter | 125±2um | Fiber color | standard spectrum | ||||
| Loose tube | Material | PBT | Color | Standard spectrum | |||
| Qty | 4 (24F) | Fiber pre tube | 6 (24F) | ||||
| 6 (72F) | 12 (72F) | ||||||
| Copper wire | Qty | 0.6mm2*2 | |||||
| Central strength member | Material | FRP | Diameter | 2.0mm | |||
| Water blcoking system | Material | Water blocking tape | |||||
| Outer sheath | Material | PE | Color | Black | |||
| Diameter | 9.2±0.2mm (24F) | Thickness | 1.6±0.1mm | ||||
| 10.8±0.2mm (72F) | |||||||
Mechanical and environment performance
| Tensile strength | Long term(N) | 600N | |||||
| Short term(N) | 1500N | ||||||
| Crush load | Long term | 300N/100mm | |||||
| Short term | 1000N/100mm | ||||||
| Bending radius | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Operating Temperature | -20℃～+70℃ | ||||||
Fiber Performance
| Fiber attenuation | 1310um | ≤0.36dB/km | |||||
| 1550um | ≤0.24dB/km | ||||||
