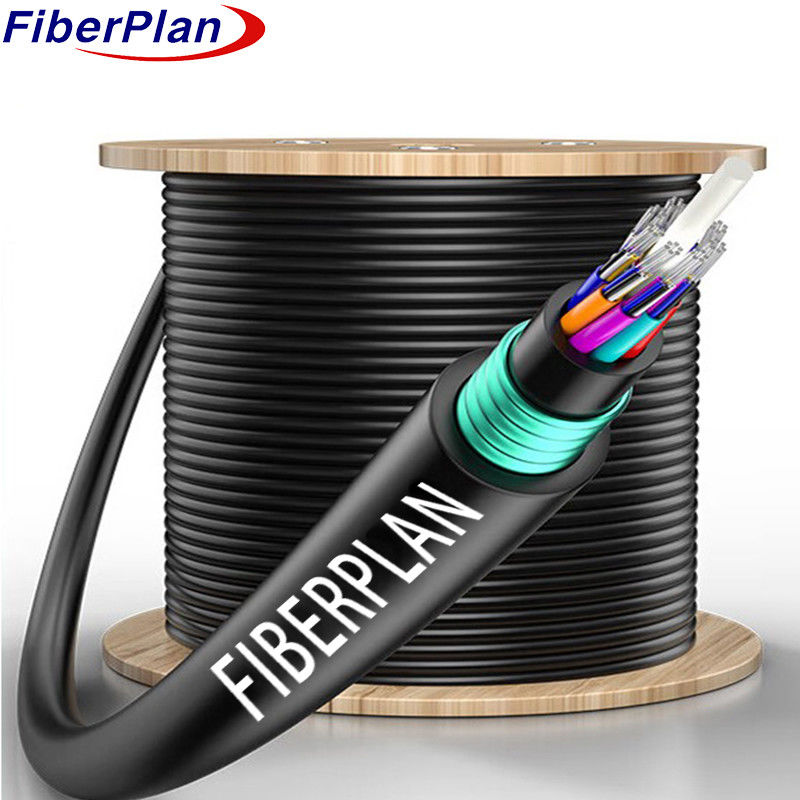

Direct Burial GYFTY53 Duct 6 Strand Armored Fiber Optic Cable Anti-Rodent
Description
The cable design consists of fibers housed within a flexible tube made of high-strength plastic, filled with a
water-resistant compound. At the core, a fiber reinforced plastic (FRP), sometimes coated with polyethyle-
ne (PE) for higher fiber counts, serves as a dielectric strength member. Surrounding this member, tubes and
fillers are stranded to form a compact circular core. To shield against water ingress, the cable core is filled
with water-blocking tape and covered by a thin PE inner sheath. Following this, a PSP layer is longitudinally
applied over the inner sheath, completing the cable with a protective PE outer sheath.
Application
★ Built for outdoor distribution and direct burial, ensuring resilience in various environments.
★ Optimized for trunk power transmission systems, enhancing energy transfer efficiency.
★ Ideal for access and local networks in areas with high electromagnetic interference, ensuring reliable connectivity in challenging settings.
Characteristic
★ Strong mechanical properties and resilience to varying temperatures.
★ Hydrolysis-resistant high-strength loose tube design.
★ Specialized tube filling compound for critical fiber protection.
★ Balanced crush resistance and flexibility for versatile use.
★ Complete cable core filling with loose tube filling compound.
★ PSP layer enhances moisture resistance, bolstering overall protection.
Structure details
| NO. of fibers | 6 | 12 | 24 | 48 | 72 | 96 | 144 |
| No. of tubes | 1 | 2 | 4 | 4 | 6 | 8 | 12 |
| fibers per tube | 6 | 6 | 6 | 12 | 12 | 12 | 12 |
| Filler Rod | 5 | 4 | 2 | 2 | 0 | 0 | 0 |
| Loose tube diameter (±0.1mm) |
2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| Inner sheath diameter (±0.2mm) |
7.6 | 7.6 | 7.6 | 7.6 | 7.6 | 9.2 | 11.8 |
| Outer diameter (±0.5mm) |
12.2 | 12.2 | 12.2 | 12.2 | 12.2 | 13.8 | 16.5 |
| Thickness of out diameter (±0.1mm) |
1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.7 | 1.7 |
| Loose tube | Material | PBT | Color | Standard spectrum | |||
| Filler rod | Material | PP | Color | Black | |||
| Tube filling | Material | Filling compound | |||||
| Central strength member | Material | FRP | Diameter | 2.0mm | |||
| Water blcoking system | Material | Water blocking tape / Filling gel | |||||
| Rip cord | Qty | 2pcs | Color | White | |||
| Inner sheath | Material | PE | Color | Black | |||
| Armor | Material | Corrugated steel tape | |||||
| Outer sheath | Material | PE | Color | Black | |||
Mechanical and environment performance
| Tensile strength | Long term(N) | 1000N | |||||
| Short term(N) | 3000N | ||||||
| Crush load | Long term | 3000N/100mm | |||||
| Short term | 1000N/100mm | ||||||
| Bending radius | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Installation Temperature | -10℃～+60℃ | ||||||
| Storage Temperature | -40℃～+70℃ | ||||||
Fiber characteristics
| Fiber type | Unit | SM G652D | MM 50/125 | MM 62.5/125 | |||
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 | |||
| Attenuation | dB/km | ≤0.35/0.20 | ≤3.0/1.5 | ≤3.0/1.5 | |||
| Cladding diameter | um | 125±0.3 | 125±0.3 | 125±0.3 | |||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | |||
| Coating diameter | um | 242±3 | 242±3 | 242±3 | |||
