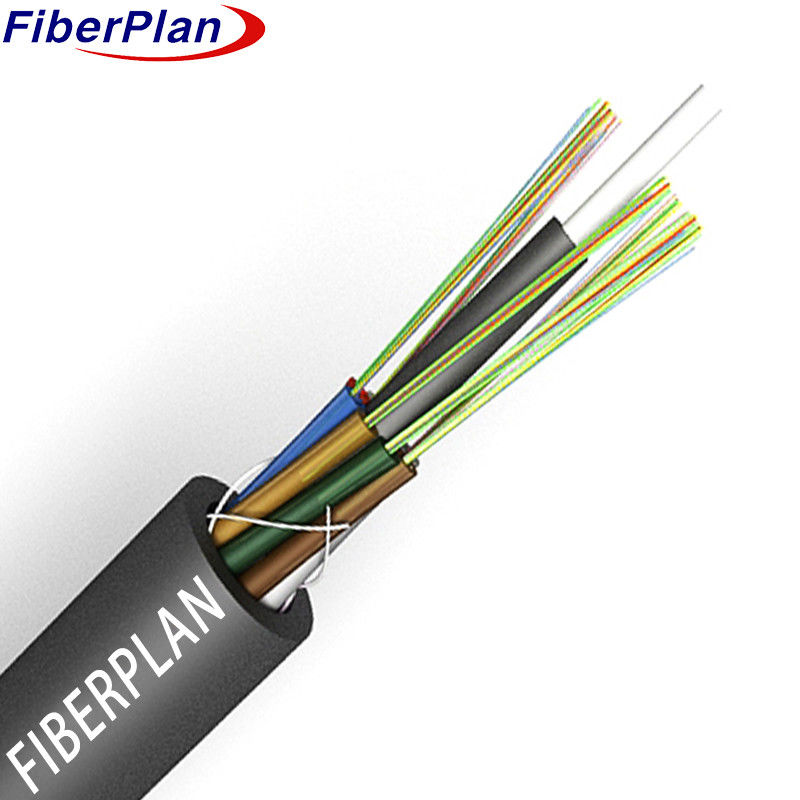

FRP Strengthened Non Armored Fiber Optic Cable Fire Retardent GYFTZY
Description
The cable construction involves placing the fibers within a high modulus plastic loose tube, which is then filled
with a water-resistant compound. In the core's center, a Fiber Reinforced Plastic (FRP) acts as a non-metallic
strength member. Surrounding this strength member, the tubes and fillers are stranded to form a compact and
circular core. Once the cable core is filled with the compound for water protection, the cable is finalized with a
PE sheath.
Application
1 Ideal for outdoor distribution purposes.
2 Suited for trunk power transmission systems.
3 Applicable in access and local networks, especially in areas with high electromagnetic interference.
Characteristics
1 Exhibits strong mechanical and temperature performance.
2 Employs a high-strength, hydrolysis-resistant loose tube.
3 Utilizes a specialized tube filling compound to ensure critical fiber protection.
4 Demonstrates crush resistance and flexibility.
5 Fills the cable core completely with the filling compound.
Structure details
| Specification | 6F | 12F | 24F | 36F | 48F | 72F | 96F | 144F |
|---|---|---|---|---|---|---|---|---|
| No. of Fiber | 6 | 12 | 24 | 36 | 48 | 72 | 96 | 144 |
| No. of Tube | 1 | 2 | 4 | 3 | 4 | 6 | 8 | 12 |
| Fiber per Tube | 6 | 6 | 6 | 12 | 12 | 12 | 12 | 12 |
| No. of Filler Rod | 4 | 4 | 1 | 2 | 1 | 0 | 0 | 0 |
| Tube Diameter (±0.1mm) | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| Thickness of Loose Tube | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Nom. Outer Diameter (±0.2mm) | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | 9.2 | 10.8 | 13.4 |
| Nom. Jacket Thickness (±0.1mm) | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.7 | 1.7 |
| Loose Tube Material | PBT | PBT | PBT | PBT | PBT | PBT | PBT | PBT |
| Loose Tube Color | Standard spectrum | Standard spectrum | Standard spectrum | Standard spectrum | Standard spectrum | Standard spectrum | Standard spectrum | Standard spectrum |
| Central Strength Member Material | FRP | FRP | FRP | FRP | FRP | FRP | FRP | FRP |
| Central Strength Member Diameter | 1.4mm (6-48F) | 1.4mm (6-48F) | 1.4mm (6-48F) | 1.4mm (6-48F) | 1.4mm (6-48F) | 2mm (72-144F) | 2mm (72-144F) | 2mm (72-144F) |
| Layer | - | - | - | - | - | PE (for 96F-144F only) | PE (for 96F-144F only) | PE (for 96F-144F only) |
| Filler Rod Material | PP | PP | PP | PP | PP | - | - | - |
| Filler Rod Color | Black | Black | Black | Black | Black | - | - | - |
| Water Blocking System Material | Filling gel | Filling gel | Filling gel | Filling gel | Filling gel | Filling gel | Filling gel | Filling gel |
| Outer Sheath Material | PE | PE | PE | PE | PE | PE | PE | PE |
| Outer Sheath Color | Black | Black | Black | Black | Black | Black | Black |
Mechanical and environment performance
| Property | Long Term | Short Term |
|---|---|---|
| Tensile Strength | 600N | 1500N |
| Crush Load | 300N/100mm | 1000N/100mm |
| Bending Radius | Dynamic: 20D | Static: 10D |
| Temperature Specifications | Storage: -20°C to +70°C | Installation: -10°C to +60°C |
Fiber performance
| Fiber Style | Unit | SM G652D | MM 50/125 | MM 62.5/125 |
|---|---|---|---|---|
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 |
| Attenuation | dB/km | ≤0.36/0.22 | ≤3.0/1.0 | ≤3.0/1.0 |
| Cladding Diameter | um | 125±0.5 | 125±0.5 | 125±0.5 |
| Cladding Non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 |
| Coating Diameter | um | 242±6 | 242±6 | 242±6 |
