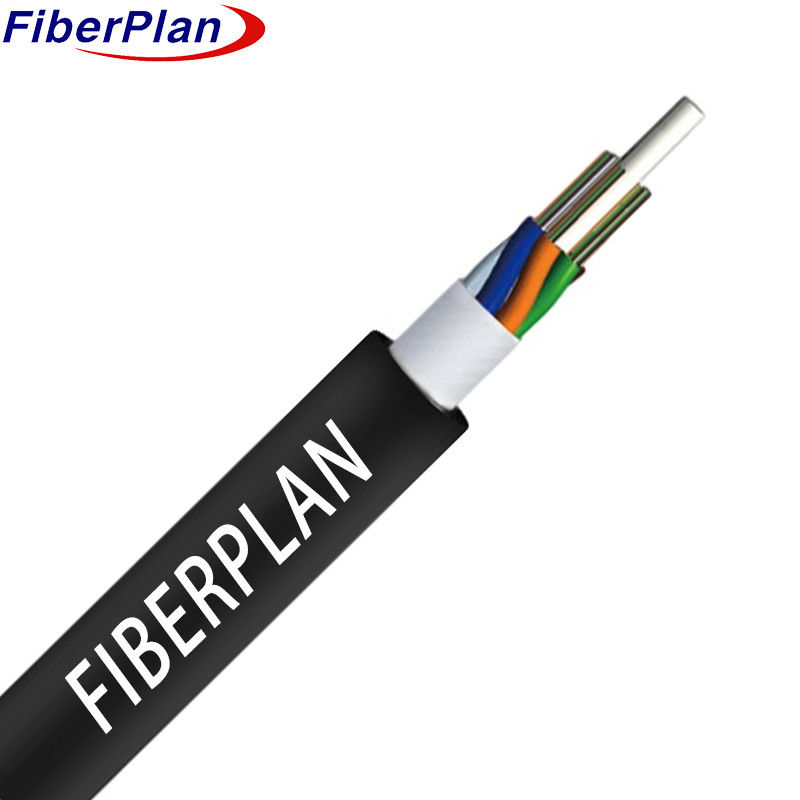

Non Armored Fiber Optic Cable GYFTY With Water Blocking Tape
Description
Bunches of fibers sit inside a flexible tube made of sturdy plastic. These tubes are filled with a substance
that repels water. Inside the core, there's a strong non-metallic piece called Fiber Reinforced Plastic (FRP).
The tubes and fillers are twisted around this central strength piece to form a tight, round core. To keep water
out, the core is covered in water-resistant tape, and finally, the whole cable is coated in a PE sheath for
protection.
Application
1 Suitable for outdoor distribution.
2 Designed for trunk power transmission systems.
3 Ideal for access networks and local networks in areas with high electromagnetic interference.
Characteristic
1 Exhibits strong mechanical resilience and handles temperature changes effectively.
2 Features a high-strength, hydrolysis-resistant loose tube.
3 Utilizes a specialized tube filling compound to provide crucial protection for the fiber.
4 Demonstrates resistance to crushing while maintaining flexibility.
5 Employs a filling compound for the loose tube to ensure added protection.
Structure details
| No. of fiber | 6F | 12F | 24F | 36F | 48F | 72F | 96F | 144F |
| No. of tube | 1 | 2 | 4 | 3 | 4 | 6 | 8 | 12 |
| Fiber per tube | 6 | 6 | 6 | 12 | 12 | 12 | 12 | 12 |
| No. of filler rod | 4 | 3 | 1 | 2 | 1 | 0 | 0 | 0 |
| Tube diameter (±0.1mm) | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| Thickness of loose tube (±0.05mm) |
0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Nom. out diameter (±0.2mm) | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | 9.2 | 10.8 | 13.4 |
| Nom. jacket thickness (±0.1mm) |
1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.7 | 1.7 |
| Loose tube | Material | PBT | Color | Standard spectrum | ||||
| Filler rod | Material | PP | Color | Black | ||||
| Tube filling | Material | Filling compound | ||||||
| Central strength member | Material | FRP | Diameter | 1.5mm (6 - 48F) | ||||
| 2mm (72 - 144F) | ||||||||
| Layer | PE (for 96C -144C only) | |||||||
| Water blcoking system | Material | water blocking tape | ||||||
| Rip cord | Type | 1110*2 | ||||||
| Out sheath | Material | MDPE | Color | Black | ||||
Mechanical and environment performance
| Tensile strength | Long term(N) | 600N | ||||||
| Short term(N) | 1500N | |||||||
| Crush load | Long term (N/100mm) | 300N/100mm | ||||||
| Short term (N/100mm) | 1000N/100mm | |||||||
| Bending radius | Dynamic (mm) | 20D | ||||||
| Static (mm) | 10D | |||||||
| Storage Temperature | -20℃～+70℃ | |||||||
| Installation Temperature | -10℃～+60℃ | |||||||
Fiber Performance
| Fiber style | Unit | SM G652D | MM 50/125 | MM 62.5/125 | ||||
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 | ||||
| Attenuation | dB/km | ≤0.36/0.22 | ≤3.0/1.0 | ≤3.0/1.0 | ||||
| Cladding diameter | um | 125±0.2 | 125±0.2 | 125±0.2 | ||||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ||||
| Coating diameter | um | 242±3 | 242±3 | 242±3 | ||||
