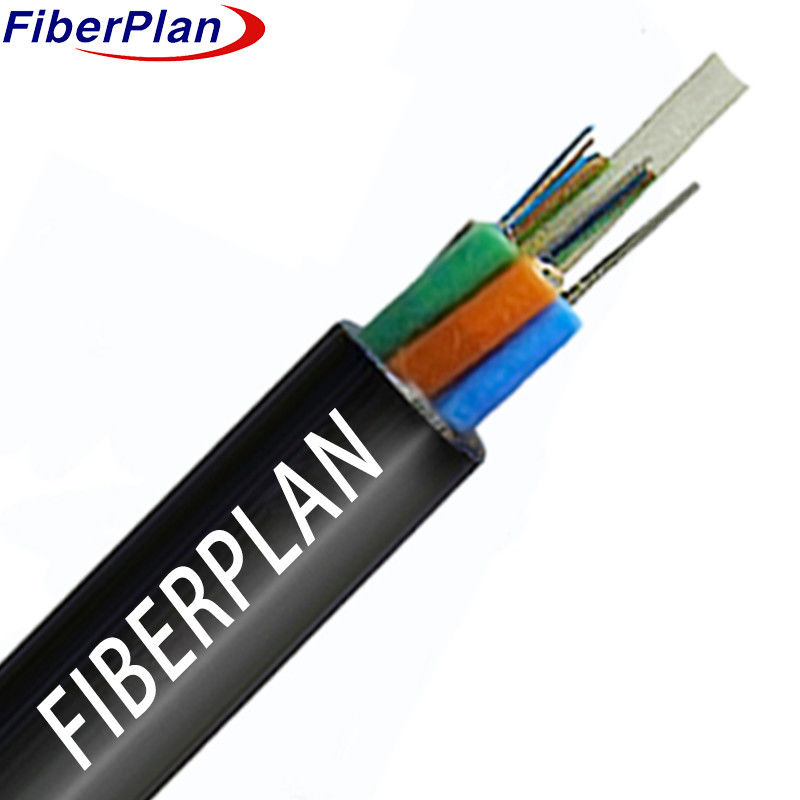

Outdoor Non Armored Single/Multi Mode Fire Retardent GYFTZY
Description
The arrangement involves placing fibers within a high modulus plastic loose tube, filled with a water-resistant
compound. An essential component, the Fiber Reinforced Plastic (FRP), serves as the non-metallic strength
member positioned at the core. Surrounding this strength member, the tubes and fillers are stranded to form a
compact, circular core. To safeguard against water ingress, the cable core is filled with a protective filling co-
mpound. Finally, the cable is encased with a PE sheath, completing the assembly.
Application
☆ Ideal for outdoor distribution networks.
☆ Well-suited for trunk power transmission systems.
☆ Reliable for access networks and local networks in areas with high electromagnetic interference.
Characteristics
☆ Excellent mechanical and temperature performance.
☆ High-strength loose tube with hydrolysis resistance.
☆ Specialized tube filling compound ensures critical fiber protection.
☆ Superior crush resistance and flexibility.
☆ Full cable core filling with the tube filling compound.
Structure details
| Specification |
6F |
12F |
24F |
36F |
48F |
72F |
96F |
144F |
| No. of Fiber |
6 |
12 |
24 |
36 |
48 |
72 |
96 |
144 |
| No. of Tube |
1 |
2 |
4 |
3 |
4 |
6 |
8 |
12 |
| Fiber per Tube |
6 |
6 |
6 |
12 |
12 |
12 |
12 |
12 |
| No. of Filler Rod |
4 |
4 |
1 |
2 |
1 |
0 |
0 |
0 |
| Tube Diameter (±0.1mm) |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
| Thickness of Loose Tube |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
| Nom. Outer Diameter (±0.2mm) |
8.6 |
8.6 |
8.6 |
8.6 |
8.6 |
9.2 |
10.8 |
13.4 |
| Nom. Jacket Thickness (±0.1mm) |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.7 |
1.7 |
| Loose Tube Material |
PBT |
PBT |
PBT |
PBT |
PBT |
PBT |
PBT |
PBT |
| Loose Tube Color |
Standard spectrum |
Standard spectrum |
Standard spectrum |
Standard spectrum |
Standard spectrum |
Standard spectrum |
Standard spectrum |
Standard spectrum |
| Central Strength Member Material |
FRP |
FRP |
FRP |
FRP |
FRP |
FRP |
FRP |
FRP |
| Central Strength Member Diameter |
1.4mm (6-48F) |
1.4mm (6-48F) |
1.4mm (6-48F) |
1.4mm (6-48F) |
1.4mm (6-48F) |
2mm (72-144F) |
2mm (72-144F) |
2mm (72-144F) |
| Layer |
- |
- |
- |
- |
- |
PE (for 96F-144F only) |
PE (for 96F-144F only) |
PE (for 96F-144F only) |
| Filler Rod Material |
PP |
PP |
PP |
PP |
PP |
- |
- |
- |
| Filler Rod Color |
Black |
Black |
Black |
Black |
Black |
- |
- |
- |
| Water Blocking System Material |
Filling gel |
Filling gel |
Filling gel |
Filling gel |
Filling gel |
Filling gel |
Filling gel |
Filling gel |
| Outer Sheath Material |
PE |
PE |
PE |
PE |
PE |
PE |
PE |
PE |
| Outer Sheath Color |
Black |
Black |
Black |
Black |
Black |
Black |
Black |
Mechanical and environment performance
| Property |
Long Term |
Short Term |
| Tensile Strength |
600N |
1500N |
| Crush Load |
300N/100mm |
1000N/100mm |
| Bending Radius |
Dynamic: 20D |
Static: 10D |
| Temperature Specifications |
Storage: -20°C to +70°C |
Installation: -10°C to +60°C |
Fiber performance
| Fiber Style |
Unit |
SM G652D |
MM 50/125 |
MM 62.5/125 |
| Condition |
mm |
1310/1550 |
850/1300 |
850/1300 |
| Attenuation |
dB/km |
≤0.36/0.22 |
≤3.0/1.0 |
≤3.0/1.0 |
| Cladding Diameter |
um |
125±1 |
125±1 |
125±1 |
| Cladding Non-circularity |
% |
≤1.0 |
≤1.0 |
≤1.0 |
| Coating Diameter |
um |
242±7 |
242±7 |
242±7 |
