Parallel Steel Wire Strengthen Composite Fiber Optic Cable
Description
The Photoelectric Composite Fiber Optic Cable, also known as a Hybrid Fiber Optic Cable,
integrates both fiber and power transmission functionalities into a single unit. This integration
eliminates the need for secondary wiring, resulting in cost savings in construction and network
deployment.
GDVV's design combines optical transmission with power copper cable, addressing challenges
related to broadband access, equipment power supply, and the transparent transmission of
electricity meter data.
This solution enables efficient monitoring and billing of electricity consumption, offering a
comprehensive and streamlined approach to cable infrastructure management.
Application
1.Tailored for Outdoor Distribution:Engineered to endure harsh outdoor conditions, this cable
ensures longevity and reliability in challenging environments.
2.Suitable for Trunk Power Transmission Systems:Well-suited for efficient long-distance power
transmission, making it an ideal choice for trunk power systems.
3.Ideal for Security Monitoring Projects:Specifically designed for security monitoring applications,
ensuring dependable connectivity and data transmission in surveillance projects.
Characteristics
Composite Cable for Electricity and Signal Transmission: Simplifies centralized monitoring and
maintenance, optimizing equipment power management.
Minimization of Power Supply Coordination and Maintenance: Streamlines power supply system
management, reducing complexities and efforts associated with coordination and maintenance.
Superior Ultraviolet Protection with PE Sheath: Provides excellent UV protection through its PE
sheath, ensuring the cable's durability in outdoor settings.

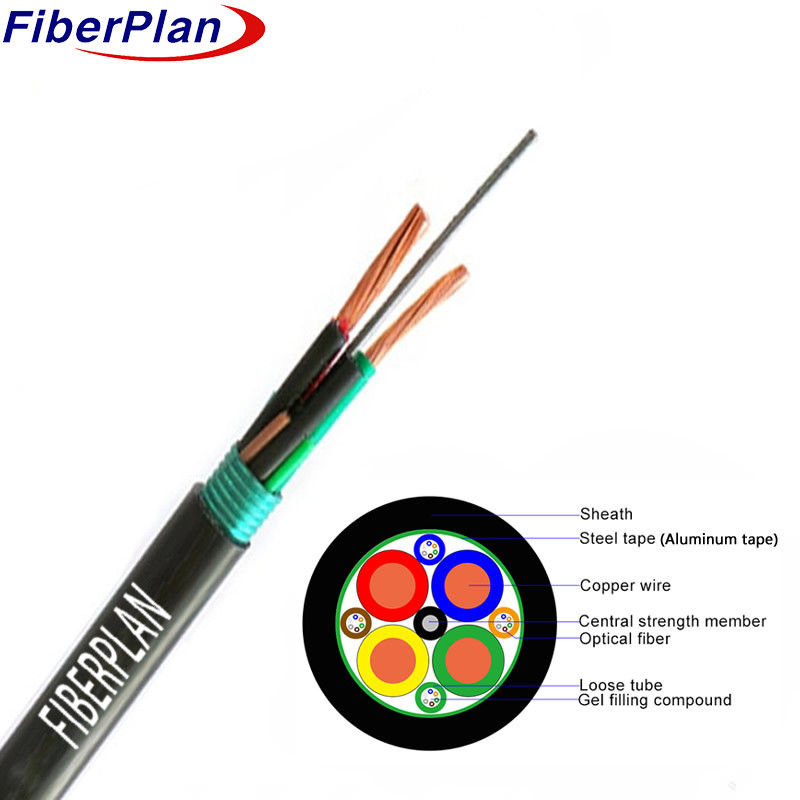

Structure details
| SM fiber | G652D | ||||||
| Fiber type | G652D | Concentricity error | ≤1um | ||||
| MFD | 8.7～9.7um | Cladding non-circularity | ≤2% | ||||
| Cladding diameter | 125±2um | Fiber color | standard spectrum | ||||
| Loose tube | Material | PBT | Color | Standard spectrum | |||
| Qty | 4 (24F) | Fiber pre tube | 6 (24F) | ||||
| 6 (72F) | 12 (72F) | ||||||
| Copper wire | Qty | 0.6mm2*2 | |||||
| Central strength member | Material | FRP | Diameter | 2.0mm | |||
| Water blcoking system | Material | Water blocking tape | |||||
| Outer sheath | Material | PE | Color | Black | |||
| Diameter | 9.2±0.2mm (24F) | Thickness | 1.6±0.1mm | ||||
| 10.8±0.2mm (72F) | |||||||
Mechanical and environment performance
| Tensile strength | Long term(N) | 600N | |||||
| Short term(N) | 1500N | ||||||
| Crush load | Long term | 300N/100mm | |||||
| Short term | 1000N/100mm | ||||||
| Bending radius | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Operating Temperature | -20℃～+70℃ | ||||||
Fiber Performance
| Fiber attenuation | 1310um | ≤0.36dB/km | |||||
| 1550um | ≤0.24dB/km | ||||||
