Polyethylene Jacket GYXTS Crush Resistance, Outdoor Armored Fiber Optic Cable
Description

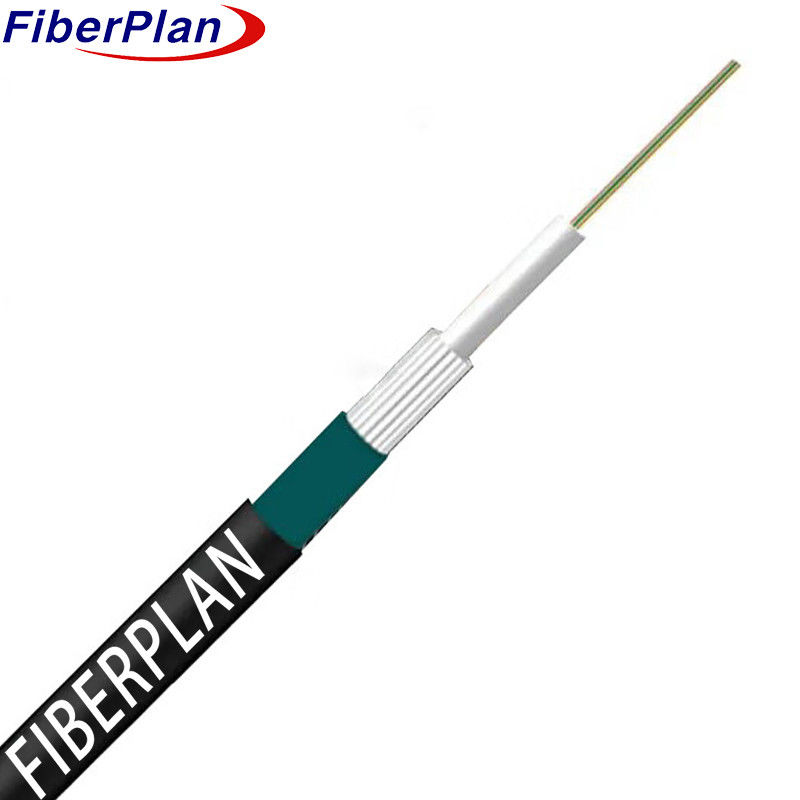

The optical fibers are housed within flexible plastic tubes filled with a waterproof compound, encased in water-
blocking glass yarn, shielded by corrugated steel tape, featuring rip cords for accessibility, and finally encased
in a durable HDPE outer layer.
Application
1 Outdoor Adaptability: Tailored for outdoor distribution, this cable withstands environmental challenges, ensuring
reliable performance in varying weather conditions.
2 Versatile Installation: Its suitability for aerial and pipeline laying methods provides flexibility in deployment, acco-
mmodating different installation scenarios efficiently.
3 Broad Communication Scope: Capable of supporting both long-distance communication needs and local area
network setups, making it versatile for various networking applications across different distances.
Characteristic
1 Good mechanical and temperature performance
2 High strength loose tube that is hydrolysis resistant
3 Special tube filling compound ensure a critical protection of fiber
4 Crush resistance and flexibility
5 PE sheath protects cable from ultraviolet radiation
6 Loose tube filling compound and 100% cable core filling
Structure details
| Fiber count | 6F-24F | ||||||
| Loose tube | Material | PBT | Color | white | |||
| Diameter | 2.9±0.05mm (6-12F) | Thickness | 0.4±0.05mm (6-12F) | ||||
| 3.5±0.05mm (24F) | 0.5±0.05mm (24F) | ||||||
| Yarn | Material | water blocking glass yarn | Qty | 20 strands | |||
| Rip cords | Qty | (1110*2)*2 | Color | White | |||
| Armor | Material | Corrugated steel tape | Diameter | 0.21*20mm | |||
| Out sheath | Material | HDPE | Color | Black | |||
| Diameter | 7.4±0.2mm (6-12F) | Thickness | 1.2-1.3mm (6-12F) | ||||
| 8.5±0.3mm (24F) | 1.3±0.1mm (24F) | ||||||
| Net weight | 48±5kg/km | ||||||
Mechanical and environment performance
| Tensile strength | Max. | 2000N | |||||
| Crush load | Max. | 2000N/100mm | |||||
| Bending radius | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Storage temperature | -50℃～+70℃ | ||||||
| Operating temperature | -40℃～+70℃ | ||||||
Fiber characteristics
| Fiber style | Unit | SM G652D | MM 50/125 | MM 62.5/125 | |||
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 | |||
| Attenuation | dB/km | ≤0.36/0.24 | ≤3.0/1.5 | ≤3.0/1.5 | |||
| Cladding diameter | um | 125±1 | 125±1 | 125±1 | |||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | |||
| Coating diameter | um | 242±7 | 242±7 | 242±7 | |||
