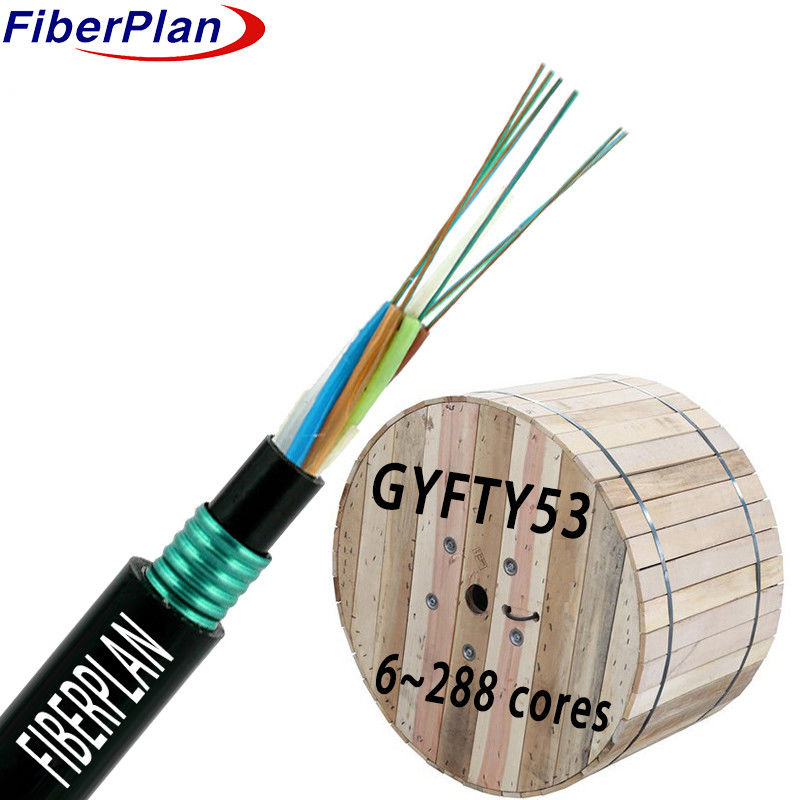

GYFTY53 Direct Burial Cable For Outdoor Use With Anti-Rodent Protection
Description
The optical fibers are enclosed in a high-strength plastic tube filled with a waterproof compound. At the core, a
fiber reinforced plastic (FRP) acts as a dielectric strength member, potentially coated in polyethylene for cables
with higher fiber counts. Around this core, tubes and fillers are intricately arranged, forming a compact circular
core. To protect against water penetration, the cable core is shielded by water-blocking tape and a thin PE inner
sheath. Finally, a PSP layer is longitudinally applied over the inner sheath, completing the cable with a PE outer
sheath for added protection.
Application
1 Tailored for outdoor distribution and direct burial applications, ensuring robust performance in challenging
outdoor conditions.
2 Specifically engineered for trunk power transmission systems, offering efficiency and reliability in extensive
network setups.
3 Ideal for access and local networks in high electromagnetic interference environments, minimizing signal
disruptions for stable communication.
Characteristic
1 Strong Mechanical and Temperature Performance: It excels in enduring various temperatures and mechanical
stress, ensuring consistent operation.
2 Hydrolysis-Resistant High-Strength Loose Tube: This tube is specially designed to withstand moisture-related
degradation, ensuring durability even in moist environments.
3 Specialized Tube Filling Compound: Protects the delicate fibers, ensuring their longevity and optimal functionality.
4 Balanced Crush Resistance with Flexibility: The cable strikes a balance between being crush-resistant while
also flexible enough for versatile installations.
5 Complete Filling of Loose Tube and Cable Core with Filling Compound: Every inch of the tube and core is filled
with the protective compound, enhancing overall robustness.
6 PSP Layer Enhancing Moisture Resistance: A Polyethylene Terephthalate layer acts as an added shield against
moisture, enhancing the cable's resilience against wet conditions.
Structure details
| NO. of fibers | 6 | 12 | 24 | 48 | 72 | 96 | 144 |
| No. of tubes | 1 | 2 | 4 | 4 | 6 | 8 | 12 |
| fibers per tube | 6 | 6 | 6 | 12 | 12 | 12 | 12 |
| Filler Rod | 5 | 4 | 2 | 2 | 0 | 0 | 0 |
| Loose tube diameter (±0.1mm) |
2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| Inner sheath diameter (±0.2mm) |
7.6 | 7.6 | 7.6 | 7.6 | 7.6 | 9.2 | 11.8 |
| Outer diameter (±0.5mm) |
12.2 | 12.2 | 12.2 | 12.2 | 12.2 | 13.8 | 16.5 |
| Thickness of out diameter (±0.1mm) |
1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.7 | 1.7 |
| Loose tube | Material | PBT | Color | Standard spectrum | |||
| Filler rod | Material | PP | Color | Black | |||
| Tube filling | Material | Filling compound | |||||
| Central strength member | Material | FRP | Diameter | 2.0mm | |||
| Water blcoking system | Material | Water blocking tape / Filling gel | |||||
| Rip cord | Qty | 2pcs | Color | White | |||
| Inner sheath | Material | PE | Color | Black | |||
| Armor | Material | Corrugated steel tape | |||||
| Outer sheath | Material | PE | Color | Black | |||
Mechanical and environment performance
| Tensile strength | Long term(N) | 1000N | |||||
| Short term(N) | 3000N | ||||||
| Crush load | Long term | 3000N/100mm | |||||
| Short term | 1000N/100mm | ||||||
| Bending radius | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Installation Temperature | -10℃～+60℃ | ||||||
| Storage Temperature | -40℃～+70℃ | ||||||
Fiber characteristics
| Fiber type | Unit | SM G652D | MM 50/125 | MM 62.5/125 | |||
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 | |||
| Attenuation | dB/km | ≤0.35/0.20 | ≤3.0/1.5 | ≤3.0/1.5 | |||
| Cladding diameter | um | 125±0.3 | 125±0.3 | 125±0.3 | |||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | |||
| Coating diameter | um | 242±3 | 242±3 | 242±3 | |||
