All Dielectric Self Supporting Cable
>
|
|
| Place of Origin | China |
| Brand Name | Fiberplan |
| Certification | ISO 9001; TÜV certificate |
| Model Number | ADSS |

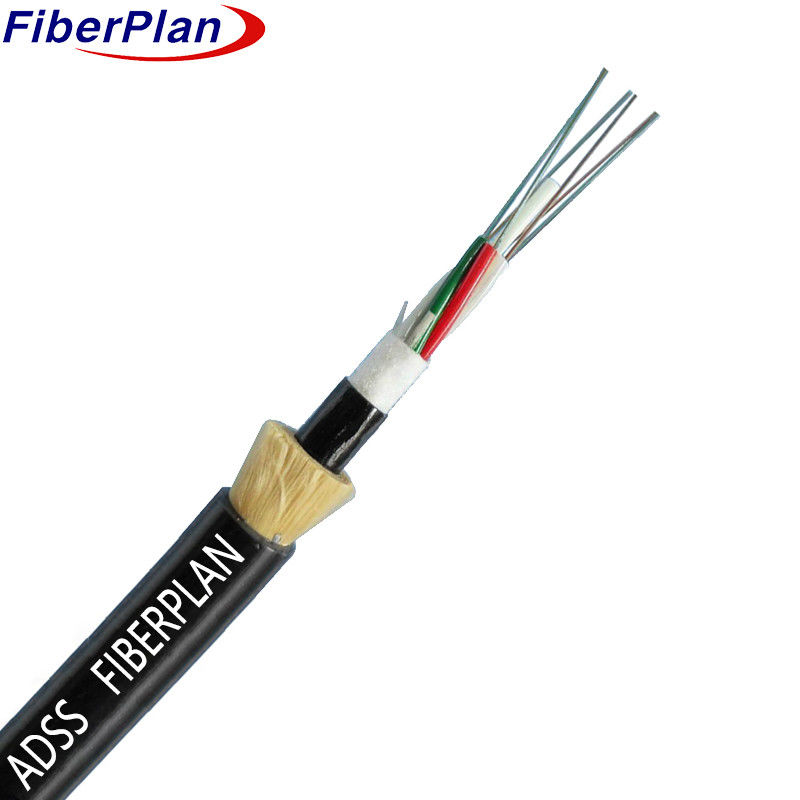

All Dielectric Self Supporting ADSS Fiber Optic Cable
Description
The cable design incorporates high-modulus plastic tubes housing the fibers, filled with a water-resistant
compound. Adding an extra layer of protection, Kevlar wraps around this assembly. To ensure a waterproof
and compact structure, a water-blocking material separates the Kevlar yarn and the loose tube. Lastly, the
cable is encased in a durable polyethylene (PE) sheath, providing defense against external elements.
Application
This specification outlines the overall prerequisites for a Single Jacket All-Dielectric Self-Supporting (ADSS)
cable designed for aerial or duct installations.
Characteristics
1 Reliable mechanical performance across diverse temperatures.
2 Hydrolysis-resistant, high-strength loose tube for durability.
3 Specialized tube filling compound for vital fiber protection.
4 Balances crush resistance with flexibility for versatile installation.
5 Enhanced tensile strength provided by two parallel steel wires.
6 Compact, lightweight design for easy and user-friendly installation.
Cable construction details
| Number of fiber | 2-144core | |||||||
| Moisture Barrier | Water blocking Tape | |||||||
| Loose tube and Filler elements | material | PBT | ||||||
| diameter | 2.1mmФ±0.2mm | |||||||
| Central strength member | material | FRP | ||||||
| size | 1.8mm±0.1mm | |||||||
| Yarn | Dupont Kelver yarn ( 7pcs) | |||||||
| Span | 50m~150m | |||||||
| Overall cable diameter | 9~11.0mm±0.3mm | |||||||
| Loose tube | material | PBT | ||||||
| diameter | Ф2.2(outer/inner) | |||||||
| Cable weight per km | 65kg/km | |||||||
| Outer sheath | material | PE | ||||||
| thickness | 1.5~2.0mm±0.2mm | |||||||
| Cable weight per km | 105kg/km | |||||||
Fiber color
|
Number of fiber 12 cores per tube |
1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Grey | White | |
| 7 | 8 | 9 | 10 | 11 | 12 | |
| Red | Black | Yellow | Violet | Pink | Aqua | |
| Color 13~24 will be marked with a black tracer.For black color no need marked black tracer, will use nature color instead. | ||||||
Cable Mechanical characteristic
| Items | Description | ||||||
| Installation temperature(℃) | -15 ~ +60 | ||||||
| Operation temperature (℃) | -40 ~ +70 | ||||||
| Min Bending Radius(mm | Long term | 10D | |||||
| short term | 20D | ||||||
| Allowable Tensile Strength(N) | Long term | 600 | |||||
| short term | 1500 | ||||||
| Crush Load(N/100mm) | Long term | 300 | |||||
| short term | 1000 | ||||||
Fiber characteristic
| Fiber style | Unit | SM G652 |
SM G652D |
MM 50/125 |
MM 62.5/125 |
MM OM3-300 |
|
| condition | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | ≤ | ≤ | ≤ | ≤3.0/1.0 | ≤3.0/1.0 | |
| 0.36/0.23 | 0.34/0.22 | 3.0/1.0 | ---- | ---- | |||
| Dispresion | 1550nm | Ps/(nm*km) | ---- | ≤18 | ---- | ---- | Dispresion |
| 1625nm | Ps/(nm*km) | ---- | ≤22 | ---- | ---- | ||
| Bandwith | 850nm | MHZ.KM | ---- | ---- | ≧400 | ≧160 | Bandwith |
| 1300nm | MHZ.KM | ---- | ---- | ≧800 | ≧500 | ||
| Zero dispersion wavelength | nm | 1300-1324 | ≧1302, ≤1322 |
---- | ---- | ≧ 1295, ≤1320 |
|
| Zero dispresion slope | nm | ≤0.092 | ≤0.091 | ---- | ---- | ---- | |
| PMD Maximum Individual Fibr | ≤0.2 | ≤0.2 | ---- | ---- | ≤0.11 | ||
| PMD Design Link Value | Ps(nm2*km) | ≤0.12 | ≤0.08 | ---- | ---- | ---- | |
| Fibre cutoff wavelength λc | nm | ≧ 1180, ≤1330 |
≧1180, ≤1330 |
---- | ---- | ---- | |
| Cable sutoff wavelength λcc | nm | ≤1260 | ≤1260 | ---- | ---- | ---- | |
| MFD | 1310nm | um | 9.2±0.3 | 9.2±0.3 | ---- | ---- | ---- |
| 1550nm | um | 10.4±0.4 | 10.4±0.4 | ---- | ---- | ---- | |
| Numerical Aperture(NA) |
---- | ---- | 0.200±0.015 | 0.275±0.015 | 0.200±0.015 | ||
| Step(mean of bidirectional measurement) |
dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| Irregularities over fiber length and point |
dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| Dicontinuity | |||||||
| Difference backscatter coefficient |
dB/km | ≤0.05 | ≤0.03 | ≤0.08 | ≤0.10 | ≤0.08 | |
| Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | ||||
| Core dimater | um | 50±1.0 | 62.5±2.5 | 50±1.0 | |||
| Cladding diameter | um | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 | |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | |
| Coating diameter | um | 242±5 | 242±5 | 242±5 | 242±5 | 242±5 | |
| Coating/chaffinch concentrically error |
um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | |
| Core/cladding conentricity error | um | ≤0.6 | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 | |
| Curl(radius) | um | ≤3 | ≤3 | ---- | ---- | ---- | |
