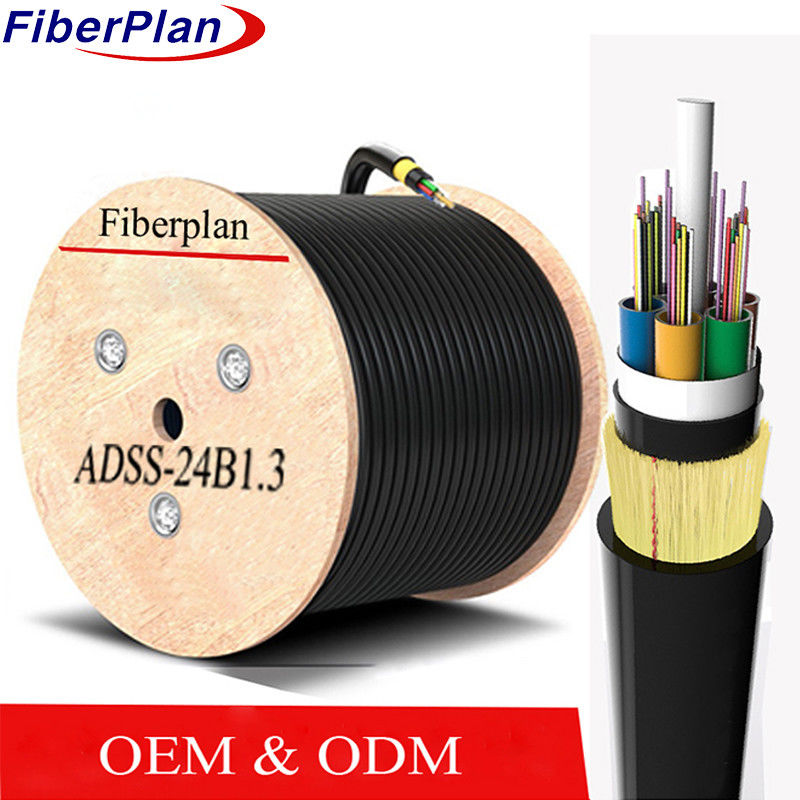

ADSS Cable G652d Single Mode Multi Mode Double Jacket Cable
Description
The ADSS cable follows a loose tube stranding design with high modulus plastic tubes housing the fibers
filled with a water-resistant compound. These tubes and fillers encase a non-metallic central strength member,
FRP, forming a compact core. This core, once filled, receives a thin PE inner sheath. Over this, aramid yarns
are stranded for added strength before applying the final PE or AT outer sheath.
Application
1 Tailored ADSS cable design reflects the conditions of overhead power lines.
2 PE outer sheath for lines under 110kV; AT outer sheath for 110kV+ lines.
3 Specific aramid quantity and stranding method meet varied span requirements.
4 Customized cable design considers diverse power line needs.
Characteristics
1 Non-disruptive installation, no need for power shutdown.
2 Lightweight, small diameter minimizes load stress on towers and supports.
3 30-year design life ensures long-term reliability.
4 Excellent tensile strength and temperature resilience.
Nominal design parameters
| NO. of fibers | 6 | 12 | 24 | 48 | 72 | 96 | 144 |
| No. of tubes | 1 | 2 | 4 | 4 | 6 | 8 | 12 |
| Filler rod | 5 | 4 | 2 | 2 | 0 | 0 | 0 |
| fibers per tube | 6 | 6 | 6 | 12 | 12 | 12 | 12 |
| Nom. tube diameter (±0.2mm) | 2 | 2 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| Nom. diameter (±0.5mm) | 12.3 | 12.3 | 12.3 | 12.3 | 12.3 | 13.0 | 15.0 |
| Loose tube | Material | PBT | Color | Standard spectrum | |||
| Filler rod | Material | PP | Color | Black | |||
| Maximum tensile strength | 4000N | ||||||
| Maximum crush load | 3000N/100mm | ||||||
| Minimun bending radius | 10D | ||||||
| Span length | 50m ~ 500m | ||||||
| Out sheath material | PE | ||||||
| Temperature range | -20℃ ~ 70℃ | ||||||
Fiber characteristics
| Fiber type | Unit | SM G652D | MM 50/125 | MM 62.5/125 | |||
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 | |||
| Attenuation | dB/km | ≤0.36/0.24 | ≤3.0/1.5 | ≤3.0/1.5 | |||
| Cladding diameter | um | 125±0.3 | 125±0.3 | 125±0.3 | |||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | |||
| Coating diameter | um | 242±4 | 242±4 | 242±4 | |||
