Double Sheath Aramid Yarn Reinforcing ADSS Self Supporting Cable

Double Sheath Aramid Yarn Reinforcing ADSS Self Supporting Cable

Description

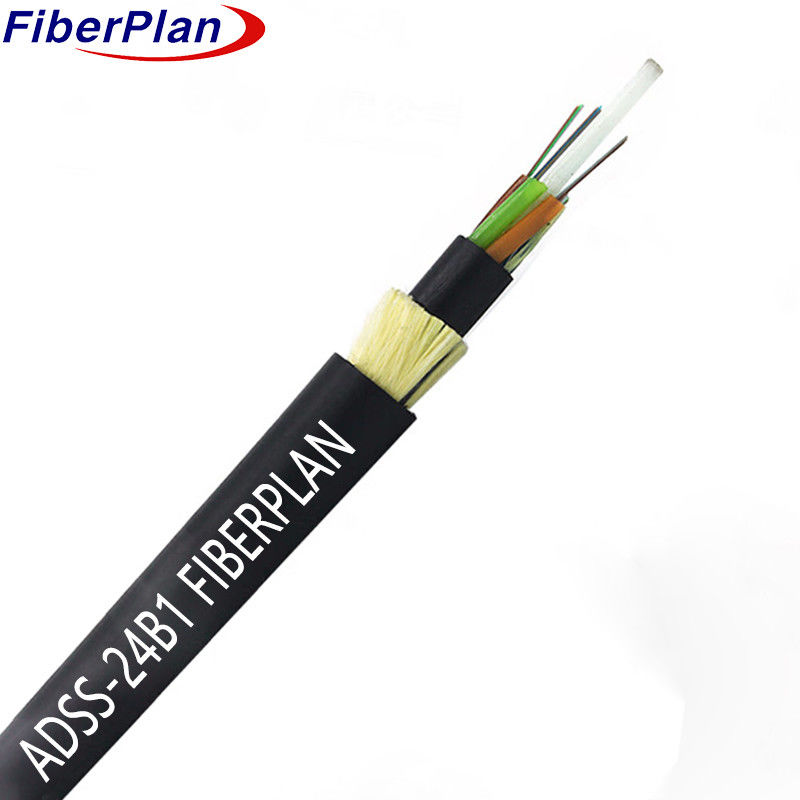

The ADSS cable employs a loose tube stranded design, housing fibers within high modulus plastic tubes

filled with a water-resistant compound. These tubes, along with fillers, are wrapped around a non-metallic

central strength member (FRP) to form a tight circular cable core, which is then filled with compound for

added protection. A thin PE inner sheath is applied over the core, followed by a layer of aramid yarns for

strength. Finally, the cable is finished with either a PE or AT outer sheath for additional protection and in-

sulation.

Application

1 ADSS cable design adapts to overhead power line specifics.

2 PE outer sheath for lines below 110kV; AT sheath for 110kV+ lines.

3 Tailored aramid and stranding suit diverse span requirements.

Characteristics

1 Non-disruptive installation without power shutdowns.

2 Light and small size to alleviate ice, wind, tower, and backprop loads.

3 30-year design life expectancy.

4 Excellent tensile strength and temperature performance.

Nominal design parameters

Fiber characteristics
