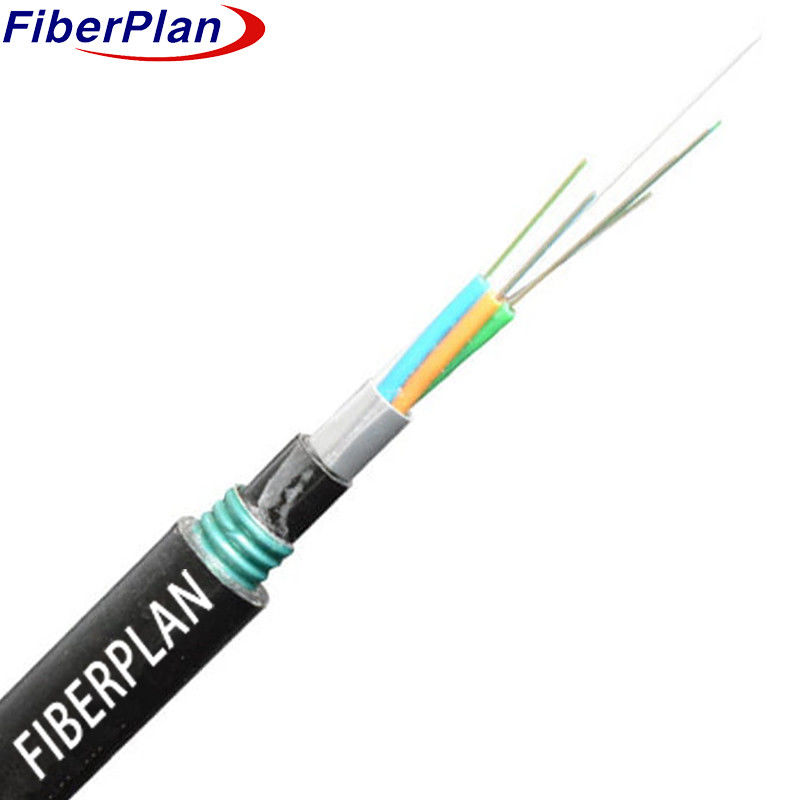

12C SM MM G652D Direct Burial Outdoor Multimode Fiber Optic Cable GYFTA53
  • 12C SM MM G652D Direct Burial Outdoor Multimode Fiber Optic Cable GYFTA53

12C SM MM G652D Direct Burial Outdoor Multimode Fiber Optic Cable GYFTA53

Place of Origin China
Brand Name Fiberplan
Certification ISO 9001; TÜV certificate
Model Number GYFTA53
Product Details
Fiber Type:
G652B, G652D, G657A1, G657A2
Jacket Material:
PE,LSZH,PVC,TPU,LSZH Or PVC
Type:
Single Mode G652d,Singlemode & Multimode
Cable Diameter:
8.0~12.0mm
Operating Temperature:
-40°C ~ +70°C
Length:
3Km Or Custom
Fiber Count:
2-288 Fibers
Structure:
Stranded Loose Tube
Central Strength Member:
FRP, KFRP
Armored Material:
Steel Wire
Tensile Strength:
1000N
Direct Burial Rated:
Yes
Highlight:

G652D Direct Burial Cable

,

12C Direct Burial Cable

,

GYFTA53 multimode fiber cable

Payment & Shipping Terms
Minimum Order Quantity
1Km
Price
Negotiation
Packaging Details
Wooden Drum
Delivery Time
5~8 work days
Payment Terms
L/C, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 km per month
Product Description

12C SM MM G652D Direct Burial Outdoor Multimode Fiber Optic Cable GYFTA53



Description

This fiber optic cable employs a high-strength, loose tube design to house 250μm fibers within a high mod-

ulus plastic. These tubes are filled with a waterproof compound and surrounded by a non-metallic FRP str-

ength member at the core. Stranded around this core, the tubes and fillers form a compact cable structure.

To safeguard against water ingress, an Aluminum Polyethylene Laminate (APL) is applied around the cable

core. Following this, a thin PE inner sheath is added, reinforced with a layer of kevlar yarn for increased te-

nsile strength. The cable's final layer includes a longitudinally applied PSP for moisture resistance, and it is

encased in a PE outer sheath for overall protection.



Application

1 Ideal for outdoor deployment, including direct burial installations.

2 Suitable for trunk power transmission systems.

3 Designed for access and local networks in high electromagnetic interference areas.



Characteristic

1 Robust mechanical and temperature performance, ensuring reliability in varying conditions.

2 A specialized tube filling compound protects the fibers crucially.

3 Balances crush resistance with flexibility for versatile installation.

4 PSP application bolsters moisture resistance, enhancing cable durability.



Structure details

NO. of fibers 6 12 24 48 72 96 144
No. of tubes 1 2 4 4 6 8 12
fibers per tube 6 6 6 12 12 12 12
Filler Rod 5 4 2 2 0 0 0
Loose tube diameter
(±0.1mm)
2.0 2.0 2.0 2.0 2.0 2.0 2.0
Inner sheath diameter
(±0.2mm)
7.6 7.6 7.6 7.6 7.6 9.2 11.8
Outer diameter
(±0.5mm)
12.2 12.2 12.2 12.2 12.2 13.8 16.5
Thickness of out diameter
(±0.1mm)
1.6 1.6 1.6 1.6 1.6 1.7 1.7
Loose tube Material PBT Color Standard spectrum
Filler rod Material PP Color Black
Tube filling Material Filling compound
Central strength member Material FRP Diameter 2.0mm
Water blcoking system Material Water blocking tape / Filling gel
Rip cord Qty 2pcs Color White
Inner sheath Material PE Color Black
Armor Material Corrugated steel tape
Outer sheath Material PE Color Black



Mechanical and environment performance

Tensile strength Long term(N) 1000N
Short term(N) 3000N
Crush load Long term 3000N/100mm
Short term 1000N/100mm
Bending radius Dynamic 20D
Static 10D
Installation Temperature -10℃~+60℃
Storage Temperature -40℃~+70℃



Fiber characteristics

Fiber type Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.35/0.20 ≤3.0/1.5 ≤3.0/1.5
Cladding diameter um 125±0.3 125±0.3 125±0.3
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±3 242±3 242±3
