Strong High-Strength Double Sheath Armored GYTY53
Description

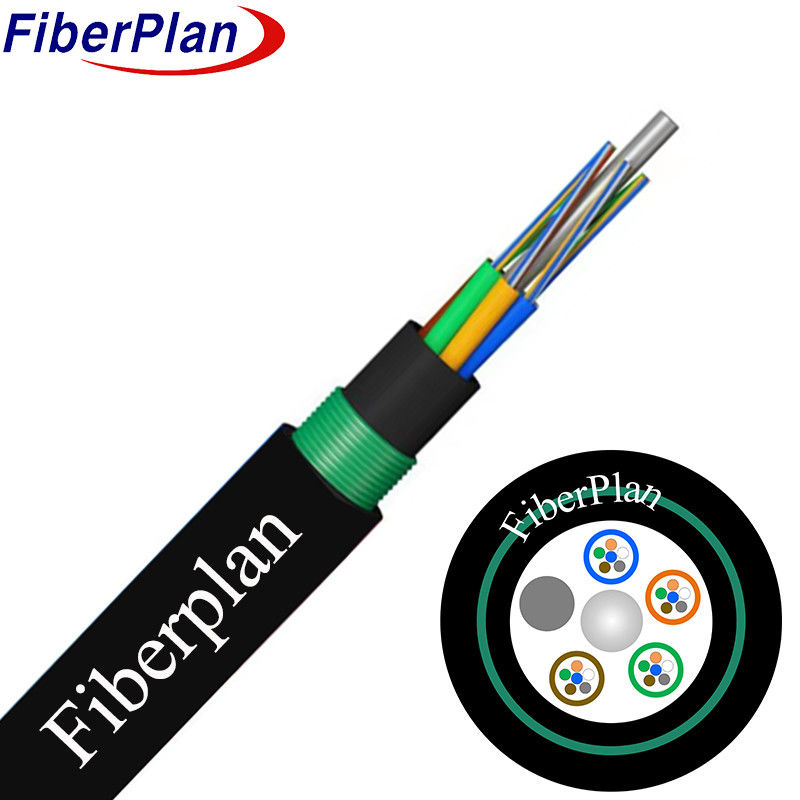

The cable configuration involves fibers housed within a flexible tube made of high-strength plastic, filled
with a water-resistant compound. Positioned at the core is a steel wire, sometimes coated with polyeth-
ylene (PE) for higher fiber count cables, serving as a metallic strength member. Surrounding this member,
tubes and fillers are stranded to form a compact circular core. To safeguard against water ingress, the cable
core is filled with the filling compound and covered by a thin PE inner sheath. Following this, a PSP layer is
longitudinally applied over the inner sheath, completing the cable with a protective PE outer sheath.
Application
1 Tailored for outdoor distribution, ensuring durability in various conditions.
2 Compatible with aerial, duct, and direct burial installations.
3 Designed for both long-distance and local area network communication needs.
Characteristic
1 Excellent mechanical strength and temperature resilience.
2 Hydrolysis-resistant high-strength loose tube construction.
3 Specialized tube filling compound ensures critical fiber protection.
4 Balances crush resistance with flexibility for versatile use.
5 Ensures watertightness through multiple measures:
* Central strength provided by steel wire.
* Complete cable core filling with loose tube filling compound.
* APL moisture barrier.
* PSP layer for enhanced moisture resistance.
* Water-blocking material for added protection.
Structure details
| NO. of fibers | 6 | 12 | 24 | 48 | 72 | 96 | 144 |
| No. of tubes | 1 | 2 | 4 | 4 | 6 | 8 | 12 |
| fibers per tube | 6 | 6 | 6 | 12 | 12 | 12 | 12 |
| Filler Rod | 5 | 4 | 2 | 2 | 0 | 0 | 0 |
| Loose tube diameter (±0.1mm) | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| Inner sheath diameter (±0.2mm) | 7.6 | 7.6 | 7.6 | 7.6 | 7.6 | 9.2 | 11.8 |
| Outer diameter (±0.5mm) | 12.2 | 12.2 | 12.2 | 12.2 | 12.2 | 13.8 | 16.5 |
| Thickness of out diameter (±0.1mm) | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.7 | 1.7 |
| Loose tube | Material | PBT | Color | Standard spectrum | |||
| Filler rod | Material | PP | Color | Black | |||
| Tube filling | Material | Filling compound | |||||
| Central strength member | Material | FRP | Diameter | 2.0mm | |||
| Water blcoking system | Material | Water blocking tape / Filling gel | |||||
| Rip cord | Qty | 2pcs | Color | White | |||
| Inner sheath | Material | PE | Color | Black | |||
| Armor | Material | Corrugated steel tape | |||||
| Outer sheath | Material | PE | Color | Black | |||
Mechanical and environment performance
| Tensile strength | Long term(N) | 1000N | |||||
| Short term(N) | 3000N | ||||||
| Crush load | Long term | 3000N/100mm | |||||
| Short term | 1000N/100mm | ||||||
| Bending radius | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Installation Temperature | -10℃～+60℃ | ||||||
| Storage Temperature | -40℃～+70℃ | ||||||
Fiber characteristics
| Fiber type | Unit | SM G652D | MM 50/125 | MM 62.5/125 | |||
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 | |||
| Attenuation | dB/km | ≤0.35/0.20 | ≤3.0/1.5 | ≤3.0/1.5 | |||
| Cladding diameter | um | 125±0.5 | 125±0.5 | 125±0.5 | |||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | |||
| Coating diameter | um | 242±6 | 242±6 | 242±6 | |||
