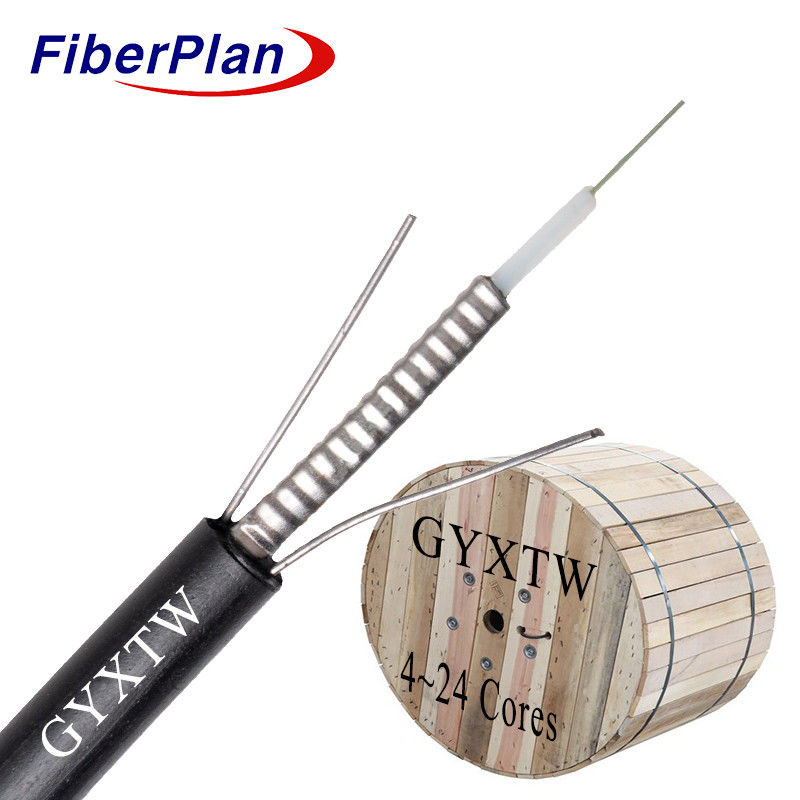

2 TO 24 CORES Single Sheath PE Duct Fiber Optic Cable GYXTW
Description
The 250μm fiber resides within a high modulus plastic loose tube, packed with a water-resistant filling
compound. Encircling the tube is a layer of PSP, applied longitudinally. Water-blocking material ensures
cable compactness and water resistance between the PSP and loose tube. Two steel wires run parallel
along the steel tape on both sides. The cable is finalized with a protective polyethylene (PE) sheath.
Application
The specification outlines the necessary standards for a Central Loose Tube Outdoor Cable intended for
aerial or duct installation.
Characteristics
1 Good mechanical and temperature performance.
2 High strength loose tube that is hydrolysis resistant.
3 Special tube filling compound ensure a critical protection of fiber.
4 Crush resistance and flexibility.
5 Two parallel steel wires ensure tensile strength.
6 Small diameter, light weight and friendly installation.
Cable construction details
| Number of fiber |
1~24core |
| Loose tube |
material |
PBT |
| diameter |
Ф2.2(outer/inner) |
| Tube-filling |
Tube filling compoun |
| Steel wire |
size |
0.8mm |
| Number |
2 |
| Outer sheath |
material |
PE,HDPE,LDPE |
| diameter |
1.8±0.2mm |
Fiber color
Number of fiber per
tube 8cores |
1 |
2 |
3 |
4 |
5 |
6 |
| Blue |
Orange |
Green |
Brown |
Grey |
White |
| 7 |
8 |
9 |
10 |
11 |
12 |
| Red |
Black |
Yellow |
Violet |
Pink |
Aqua |
| Color 13~24 will be marked with a black tracer.For black color no need marked black tracer, will use nature color instead. |
Cable Mechanical characteristic
| core |
Cable diameter |
weight |
| 1~24 |
8.0mm+-0.3mm |
65kg/km+-10kg |
| Temperature range |
-40+70 |
----- |
| Min Bending Radius(mm) |
Long term |
10D |
Min Bending
Radius(mm) |
Short term |
20D |
Min allowable
Tensile Strength(N) |
Long term |
1200 |
Min allowable
Tensile Strength(N) |
Short term |
1500 |
Operation
temperature (℃) |
-40+70 |
Installation
temperature(℃) |
-20+60 |
Storage temprature
(℃) |
-40+70 |
Fiber characteristic
| Fiber style |
Unit |
SM
G652 |
SM
G652D |
MM
50/125 |
MM
62.5/125 |
MM
OM3-300 |
| condition |
nm |
1310/1550 |
1310/1550 |
850/1300 |
850/1300 |
850/1300 |
| attenuation |
dB/km |
≤ |
≤ |
≤ |
≤3.0/1.0 |
≤3.0/1.0 |
| 0.36/0.23 |
0.34/0.22 |
3.0/1.0 |
---- |
---- |
| Dispresion |
1550nm |
Ps/(nm*km) |
---- |
≤18 |
---- |
---- |
Dispresion |
| 1625nm |
Ps/(nm*km) |
---- |
≤22 |
---- |
---- |
|
| Bandwith |
850nm |
MHZ.KM |
---- |
---- |
≧400 |
≧160 |
Bandwith |
| 1300nm |
MHZ.KM |
---- |
---- |
≧800 |
≧500 |
|
| Zero dispersion wavelength |
nm |
1300-1324 |
≧1302,
≤1322 |
---- |
---- |
≧ 1295,
≤1320 |
| Zero dispresion slope |
nm |
≤0.092 |
≤0.091 |
---- |
---- |
---- |
| PMD Maximum Individual Fibr |
|
≤0.2 |
≤0.2 |
---- |
---- |
≤0.11 |
| PMD Design Link Value |
Ps(nm2*k
m) |
≤0.12 |
≤0.08 |
---- |
---- |
---- |
| Fibre cutoff wavelength λc |
nm |
≧ 1180,
≤1330 |
≧1180,
≤1330 |
---- |
---- |
---- |
Cable sutoff
wavelength λcc |
nm |
≤1260 |
≤1260 |
---- |
---- |
---- |
| MFD |
1310nm |
um |
9.2+/-0.4 |
9.2+/-0.4 |
---- |
---- |
---- |
| 1550nm |
um |
10.4+/-0.8 |
10.4+/-0.8 |
---- |
---- |
---- |
Numerical
Aperture(NA) |
|
---- |
---- |
0.200+/
-0.015 |
0.275+/-0.
015 |
0.200+/-0
.015 |
Step(mean of bidirectional
measurement) |
dB |
≤0.05 |
≤0.05 |
≤0.10 |
≤0.10 |
≤0.10 |
Irregularities over fiber
length and point |
dB |
≤0.05 |
≤0.05 |
≤0.10 |
≤0.10 |
≤0.10 |
| Dicontinuity |
Difference backscatter
coefficient |
dB/km |
≤0.05 |
≤0.03 |
≤0.08 |
≤0.10 |
≤0.08 |
| Attenuation uniformity |
dB/km |
≤0.01 |
≤0.01 |
|
|
|
| Core dimater |
um |
|
|
50+/-1.0 |
62.5+/-2.5 |
50+/-1.0 |
| Cladding diameter |
um |
125.0+/-0.1 |
125.0+/-0.1 |
125.0+/-0.1 |
125.0+/-0.1 |
125.0+/-0.1 |
| Cladding non-circularity |
% |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
| Coating diameter |
um |
242+/-7 |
242+/-7 |
242+/-7 |
242+/-7 |
242+/-7 |
Coating/chaffinch
concentrically error |
um |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
≤12.0 |
| Coating non circularity |
% |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
≤6.0 |
| Core/cladding conentricity error |
um |
≤0.6 |
≤0.6 |
≤1.5 |
≤1.5 |
≤1.5 |
| Curl(radius) |
um |
≤4 |
≤4 |
---- |
---- |
---- |
