| Place of Origin | China |
| Brand Name | Fiberplan |
| Certification | ISO 9001; TÜV certificate |
| Model Number | GYXTC8Y |

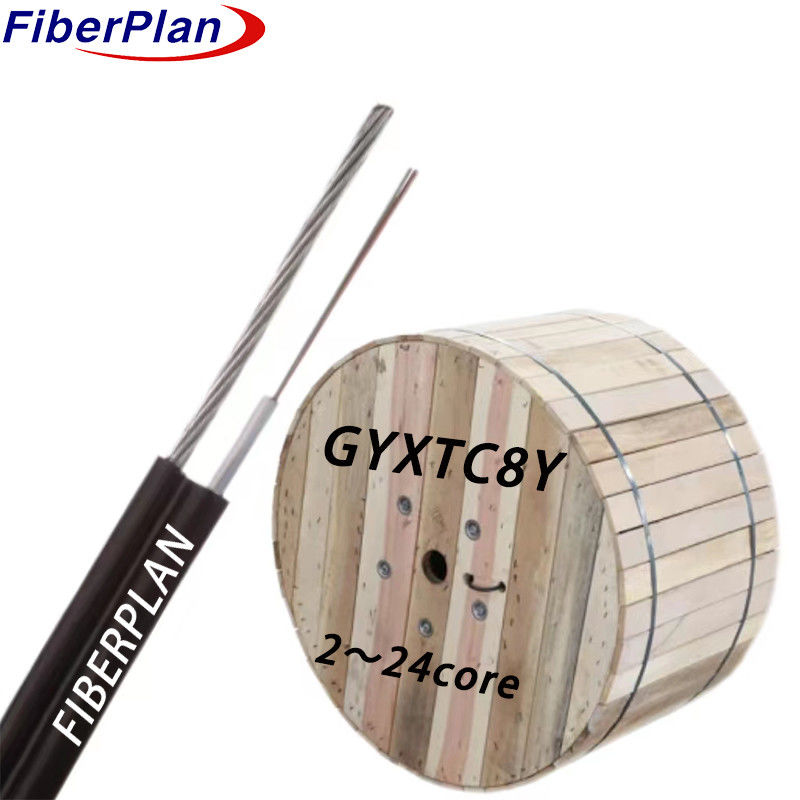

GYXTC8Y Aerial Fiber Optic Cable with Central Loose Tube Design
Description
The cable incorporates fibers housed within a high modulus plastic loose tube, filled with a water-resistant com-
pound. Accompanied by support wires, this assembly is enclosed within a PE sheath, forming a figure 8 structure.
Application
1 Designed for outdoor deployment, ensuring durability.
2 Compatible with aerial and pipeline installation methods.
3 Ideal for long-distance and local network communication.
Characteristic
1 Demonstrated performance with the proven loose tube design.
2 Non-metallic strength ensures exceptional anti-electromagnetic capability.
3 Remarkable mechanical and environmental resilience.
4 Offers excellent flexibility and bending performance.
5 Lightweight with a small outer diameter, facilitating easy installation.
Cable Construction Details
| Fiber count | 2F-24F | ||||||
|---|---|---|---|---|---|---|---|
| Loose Tube | Material | PBT | Diameter | 2.8mm | |||
| Tube-filling | Mateial | Filling compound | |||||
| Water blocking systme | Material | Water blocking tape / Filling gel | |||||
| Mental strength member | Mateial | Steel wire | Size | 1.4mm | |||
| Gallus | Mateial | PE | Size (h*w) |
1.5mm*1.0mm | |||
| Outer Sheath | Material | PE | Color | black | |||
| Diameter | 3.8*6.5-12 (±0.5)mm |
Thickness | 1.6±0.05mm | ||||
Cable mechanical and environment chararcteristics
| Tensile strength | Long term | 600N | |||||
| Short term | 1500N | ||||||
| Crush load | Long term | 300N/100mm | |||||
| Short term | 1000N/100mm | ||||||
| Bending radius | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Installation Temperature | -10℃～+60℃ | ||||||
| Storage Temperature | -40℃～+70℃ | ||||||
Fiber characteristics
| Fiber type | Unit | SM G652D | MM 50/125 | MM 62.5/125 | |||
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 | |||
| Attenuation | dB/km | ≤0.36/0.24 | ≤3.0/1.5 | ≤3.0/1.5 | |||
| Cladding diameter | um | 125±0.3 | 125±0.5 | 125±0.3 | |||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | |||
| Coating diameter | um | 242±6 | 242±6 | 242±6 | |||
