GYXTC8Y Central Loose Tube Fiber Optic Cable
Description

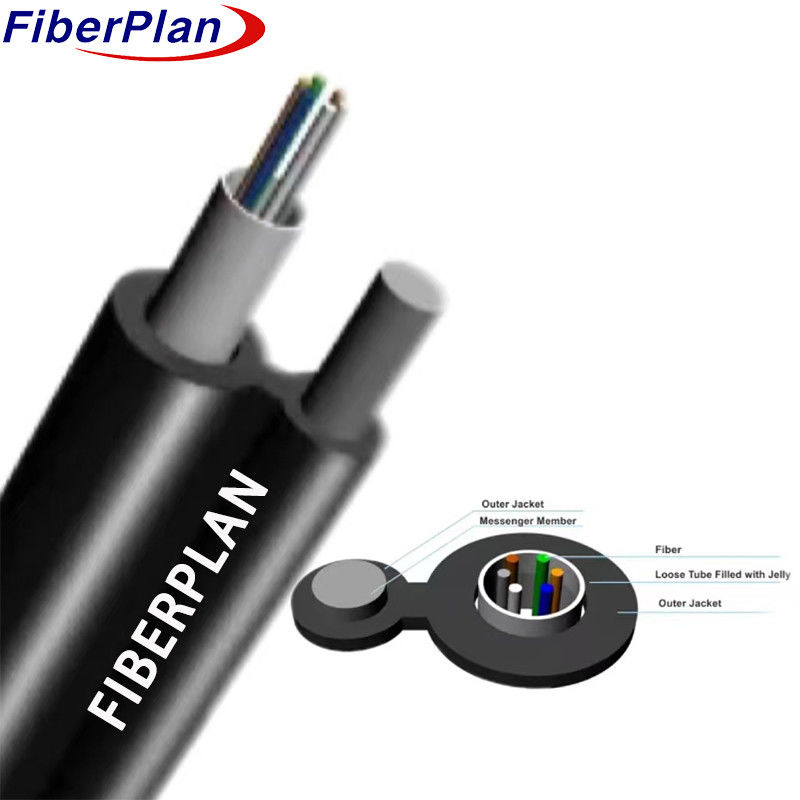

The fibers are housed within a high-strength plastic loose tube and filled with a water-resistant compound.
This portion of the cable, alongside the wires that provide support, is encased in a PE sheath, forming a f-
igure 8 structure.
Application
1 Tailored for outdoor installations.
2 Ideal for aerial and pipeline deployment.
3 Facilitates long-distance and local network communications.
Characteristic
1 Established loose tube design ensures reliable performance.
2 Non-metallic strength offers excellent anti-electromagnetic properties.
3 Demonstrates superior mechanical and environmental resilience.
4 Flexible and bendable with good performance.
5 Lightweight and small in diameter, facilitating easy installation.
Cable Construction Details
| Fiber count |
2F-24F |
| Loose Tube |
Material |
PBT |
Diameter |
2.8mm |
| Tube-filling |
Mateial |
Filling compound |
| Water blocking systme |
Material |
Water blocking tape / Filling gel |
| Mental strength member |
Mateial |
Steel wire |
Size |
1.4mm |
| Gallus |
Mateial |
PE |
Size
(h*w) |
1.5mm*1.0mm |
| Outer Sheath |
Material |
PE |
Color |
black |
| Diameter |
3.8*6.5-12
(±0.5)mm |
Thickness |
1.6±0.05mm |
Cable mechanical and environment chararcteristics
| Tensile strength |
Long term |
600N |
| Short term |
1500N |
| Crush load |
Long term |
300N/100mm |
| Short term |
1000N/100mm |
| Bending radius |
Dynamic |
20D |
| Static |
10D |
| Installation Temperature |
-10℃～+60℃ |
| Storage Temperature |
-40℃～+70℃ |
Fiber characteristics
| Fiber type |
Unit |
SM G652D |
MM 50/125 |
MM 62.5/125 |
| Condition |
mm |
1310/1550 |
850/1300 |
850/1300 |
| Attenuation |
dB/km |
≤0.36/0.24 |
≤3.0/1.5 |
≤3.0/1.5 |
| Cladding diameter |
um |
125±0.3 |
125±0.5 |
125±0.3 |
| Cladding non-circularity |
% |
≤1.0 |
≤1.0 |
≤1.0 |
| Coating diameter |
um |
242±6 |
242±6 |
242±6 |
