Outdoor Armored Singlemode GYXTW G652D Fiber Optic Cable
Description

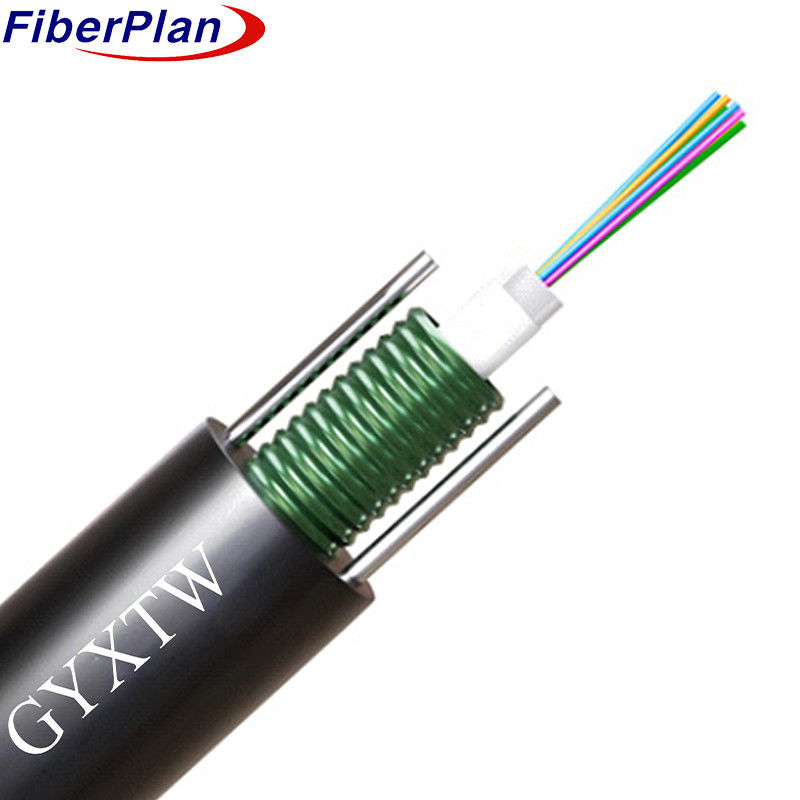

The cable utilizes high modulus plastic tubes containing the fibers, filled with a water-resistant
compound for protection. A layer of corrugated steel tape, sealed with water-blocking material,
ensures a compact and waterproof structure. Reinforcement is provided by parallel steel wires
alongside the tape. Finally, the cable is encased in a protective polyethylene (PE) sheath,
ensuring overall environmental resilience.
Application
Intended for aerial or duct installations, the cable meets the structural, environmental, and
performance standards necessary for deployment in outdoor settings. It is designed to be
suspended aerially or placed within ducts, catering to various communication or networking
purposes.
Characteristics
1.Temperature-Resilient Construction:The cable is designed to maintain strong mechanical
performance across temperature variations, ensuring consistent functionality in diverse
environmental conditions.
2.Fiber Protection:Its hydrolysis-resistant, high-strength loose tube, combined with a specialized
filling compound, provides vital shielding for the fibers, ensuring their critical protection.
3.Combined Strength and Flexibility:Reinforced by dual parallel steel wires, the cable offers a
unique blend of crush resistance and flexibility, enhancing its tensile strength for enduring reliability.
4.Effortless Installation:Featuring a compact and lightweight design, this cable is engineered
for easy and adaptable installations across various applications, ensuring user-friendly deployment.
Cable construction details
| Number of fiber | 0~24core | |||||||
| Loose tube | material | PBT | ||||||
| diameter | Ф2.2(outer/inner) | |||||||
| Tube-filling | Tube filling compound | |||||||
| Steel wire | size | 0.8mm | ||||||
| Number | 2 | |||||||
| Outer sheath | material | PE,HDPE,LDPE | ||||||
| diameter | 7±0.2mm | |||||||
Fiber color
|
Number of fiber 8 cores per tube |
1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Grey | White | |
| 7 | 8 | 9 | 10 | 11 | 12 | |
| Red | Black | Yellow | Violet | Pink | Aqua | |
| Color 13~24 will be marked with a black tracer.For black color no need marked black tracer, will use nature color instead. | ||||||
Cable Mechanical characteristic
| core | Cable diameter | weight | |||||
| 1~24 | 8.0mm+-0.3mm | 65kg/km+-10kg | |||||
| Temperature range | -40+70 | ----- | |||||
| Min Bending Radius (mm) | Long term | 10D | |||||
| Min Bending Radius (mm) |
Short term | 20D | |||||
| Min allowable Tensile Strength (N) |
Long term | 1200 | |||||
| Min allowable Tensile Strength (N) |
Short term | 1500 | |||||
| Operation temperature (℃) |
-40+70 | ||||||
| Installation temperature (℃) |
-20+60 | ||||||
| Storage temprature (℃) | -40+70 | ||||||
Fiber characteristic
| Fiber style | Unit | SM G652 |
SM G652D |
MM 50/125 |
MM 62.5/125 |
MM OM3-300 |
|
| condition | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | ≤ | ≤ | ≤ | ≤3.0/1.0 | ≤3.0/1.0 | |
| 0.36/0.23 | 0.34/0.22 | 3.0/1.0 | ---- | ---- | |||
| Dispresion | 1550nm | Ps/(nm*km) | ---- | ≤18 | ---- | ---- | Dispresion |
| 1625nm | Ps/(nm*km) | ---- | ≤22 | ---- | ---- | ||
| Bandwith | 850nm | MHZ.KM | ---- | ---- | ≧400 | ≧160 | Bandwith |
| 1300nm | MHZ.KM | ---- | ---- | ≧800 | ≧500 | ||
| Zero dispersion wavelength | nm | 1300-1324 | ≧1302, ≤1322 |
---- | ---- | ≧ 1295, ≤1320 |
|
| Zero dispresion slope | nm | ≤0.092 | ≤0.091 | ---- | ---- | ---- | |
| PMD Maximum Individual Fibr | ≤0.2 | ≤0.2 | ---- | ---- | ≤0.11 | ||
| PMD Design Link Value | Ps(nm2*km) | ≤0.12 | ≤0.08 | ---- | ---- | ---- | |
| Fibre cutoff wavelength λc | nm | ≧ 1180, ≤1330 |
≧1180, ≤1330 |
---- | ---- | ---- | |
| Cable sutoff wavelength λcc |
nm | ≤1260 | ≤1260 | ---- | ---- | ---- | |
| MFD | 1310nm | um | 9.2+/-0.4 | 9.2+/-0.4 | ---- | ---- | ---- |
| 1550nm | um | 10.4+/-0.8 | 10.4+/-0.8 | ---- | ---- | ---- | |
| Numerical Aperture(NA) |
---- | ---- | 0.200+/ -0.015 |
0.275+/-0. 015 |
0.200+/-0 .015 |
||
| Step(mean of bidirectional measurement) |
dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| Irregularities over fiber length and point |
dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| Dicontinuity | |||||||
| Difference backscatter coefficient |
dB/km | ≤0.05 | ≤0.03 | ≤0.08 | ≤0.10 | ≤0.08 | |
| Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | ||||
| Core dimater | um | 50+/-1.0 | 62.5+/-2.5 | 50+/-1.0 | |||
| Cladding diameter | um | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | |
| Coating diameter | um | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | |
| Coating/chaffinch concentrically error |
um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | |
| Core/cladding conentricity error | um | ≤0.6 | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 | |
| Curl(radius) | um | ≤4 | ≤4 | ---- | ---- | ---- | |
