Outdoor Fiber Optic Cable
>
|
| Place of Origin | China |
| Brand Name | Fiberplan |
| Certification | ISO 9001; TÜV certificate |
| Model Number | GYXTW |
Outdoor Armored Singlemode GYXTW G652D Fiber Optic Cable
Description

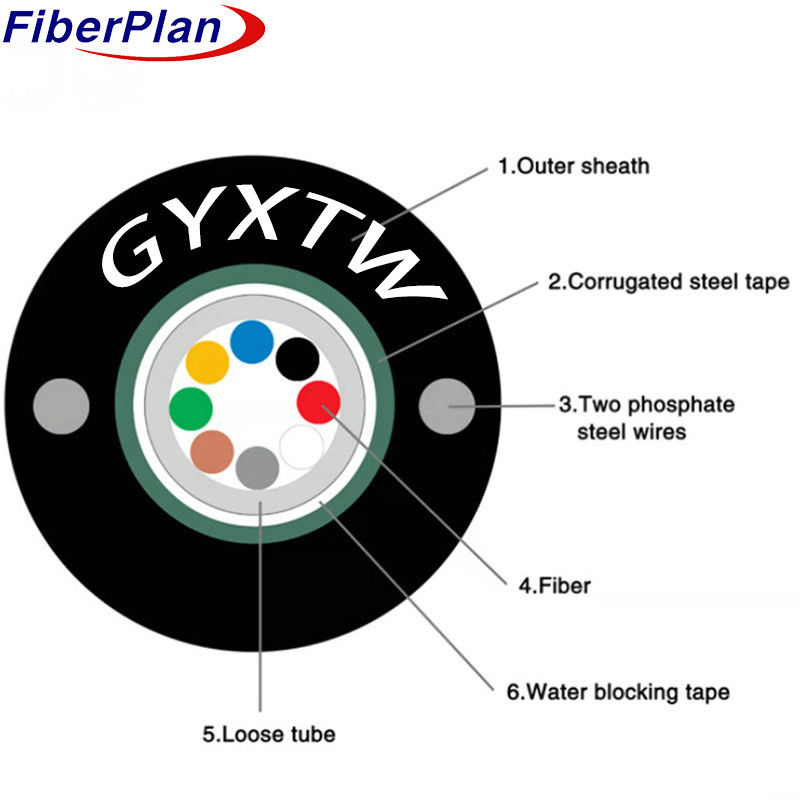

The cable employs high modulus plastic tubes to house the fibers, which are filled with a
water-resistant compound for enhanced protection against moisture. A layer of corrugated
steel tape, sealed with water-blocking material, ensures a compact and waterproof structure.
Parallel steel wires provide additional reinforcement alongside the tape, enhancing the cable's
durability and strength. Finally, the cable is encased in a protective polyethylene (PE) sheath,
ensuring comprehensive environmental resilience and longevity in outdoor installations.
Application
Designed for aerial or duct installations, this cable meets essential structural, environmental,
and performance standards required for outdoor deployment. It is well-suited for both aerial
suspension and placement within ducts, making it an ideal choice for a wide range of
communication and networking applications. The cable's robust design ensures reliability
and durability in various environmental conditions, providing secure and efficient data
transmission for outdoor installations.
Characteristics
1.Temperature-Resilient Construction:Engineered to maintain robust mechanical performance
across temperature variations, ensuring consistent functionality in diverse environmental conditions.
2.Fiber Protection:Incorporates a hydrolysis-resistant, high-strength loose tube filled with a
specialized compound, providing essential shielding for the fibers and ensuring critical protection.
3.Combined Strength and Flexibility:Enhanced by dual parallel steel wires, the cable offers a
unique combination of crush resistance and flexibility, bolstering its tensile strength for enduring reliability.
4.Effortless Installation:Designed with a compact and lightweight build, this cable enables effortless and
versatile installations across diverse applications, ensuring straightforward deployment for users.
Cable construction details
| Number of fiber | 0~24core | |||||||
| Loose tube | material | PBT | ||||||
| diameter | Ф2.2(outer/inner) | |||||||
| Tube-filling | Tube filling compound | |||||||
| Steel wire | size | 0.8mm | ||||||
| Number | 2 | |||||||
| Outer sheath | material | PE,HDPE,LDPE | ||||||
| diameter | 7±0.2mm | |||||||
Fiber color
|
Number of fiber 8 cores per tube |
1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Grey | White | |
| 7 | 8 | 9 | 10 | 11 | 12 | |
| Red | Black | Yellow | Violet | Pink | Aqua | |
| Color 13~24 will be marked with a black tracer.For black color no need marked black tracer, will use nature color instead. | ||||||
Cable Mechanical characteristic
| core | Cable diameter | weight | |||||
| 1~24 | 8.0mm+-0.3mm | 65kg/km+-10kg | |||||
| Temperature range | -40+70 | ----- | |||||
| Min Bending Radius (mm) | Long term | 10D | |||||
| Min Bending Radius (mm) |
Short term | 20D | |||||
| Min allowable Tensile Strength (N) |
Long term | 1200 | |||||
| Min allowable Tensile Strength (N) |
Short term | 1500 | |||||
| Operation temperature (℃) |
-40+70 | ||||||
| Installation temperature (℃) |
-20+60 | ||||||
| Storage temprature (℃) | -40+70 | ||||||
Fiber characteristic
| Fiber style | Unit | SM G652 |
SM G652D |
MM 50/125 |
MM 62.5/125 |
MM OM3-300 |
|
| condition | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | ≤ | ≤ | ≤ | ≤3.0/1.0 | ≤3.0/1.0 | |
| 0.36/0.23 | 0.34/0.22 | 3.0/1.0 | ---- | ---- | |||
| Dispresion | 1550nm | Ps/(nm*km) | ---- | ≤18 | ---- | ---- | Dispresion |
| 1625nm | Ps/(nm*km) | ---- | ≤22 | ---- | ---- | ||
| Bandwith | 850nm | MHZ.KM | ---- | ---- | ≧400 | ≧160 | Bandwith |
| 1300nm | MHZ.KM | ---- | ---- | ≧800 | ≧500 | ||
| Zero dispersion wavelength | nm | 1300-1324 | ≧1302, ≤1322 |
---- | ---- | ≧ 1295, ≤1320 |
|
| Zero dispresion slope | nm | ≤0.092 | ≤0.091 | ---- | ---- | ---- | |
| PMD Maximum Individual Fibr | ≤0.2 | ≤0.2 | ---- | ---- | ≤0.11 | ||
| PMD Design Link Value | Ps(nm2*km) | ≤0.12 | ≤0.08 | ---- | ---- | ---- | |
| Fibre cutoff wavelength λc | nm | ≧ 1180, ≤1330 |
≧1180, ≤1330 |
---- | ---- | ---- | |
| Cable sutoff wavelength λcc |
nm | ≤1260 | ≤1260 | ---- | ---- | ---- | |
| MFD | 1310nm | um | 9.2+/-0.4 | 9.2+/-0.4 | ---- | ---- | ---- |
| 1550nm | um | 10.4+/-0.8 | 10.4+/-0.8 | ---- | ---- | ---- | |
| Numerical Aperture(NA) |
---- | ---- | 0.200+/ -0.015 |
0.275+/-0. 015 |
0.200+/-0 .015 |
||
| Step(mean of bidirectional measurement) |
dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| Irregularities over fiber length and point |
dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| Dicontinuity | |||||||
| Difference backscatter coefficient |
dB/km | ≤0.05 | ≤0.03 | ≤0.08 | ≤0.10 | ≤0.08 | |
| Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | ||||
| Core dimater | um | 50+/-1.0 | 62.5+/-2.5 | 50+/-1.0 | |||
| Cladding diameter | um | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | |
| Coating diameter | um | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | |
| Coating/chaffinch concentrically error |
um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | |
| Core/cladding conentricity error | um | ≤0.6 | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 | |
| Curl(radius) | um | ≤4 | ≤4 | ---- | ---- | ---- | |
