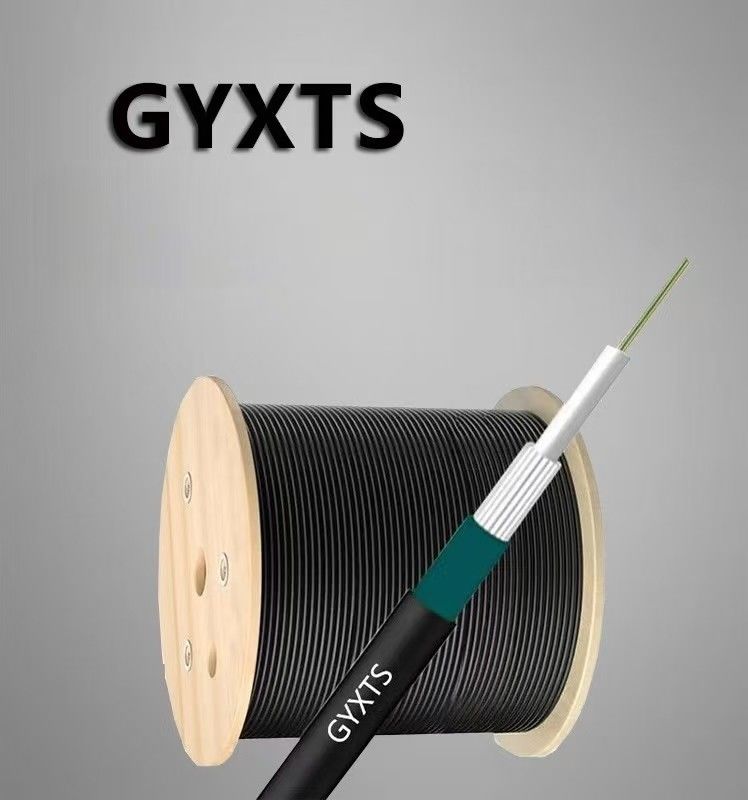

Polyethylene Jacket GYXTS Crush Resistance, Outdoor Armored Fiber Optic Cable
Description
The optical fibers are housed within flexible plastic tubes filled with a waterproof compound, encased in water-
blocking glass yarn, shielded by corrugated steel tape, featuring rip cords for accessibility, and finally encased
in a durable HDPE outer layer.
Application
1 Outdoor Adaptability: Tailored for outdoor distribution, this cable withstands environmental challenges, ensuring
reliable performance in varying weather conditions.
2 Versatile Installation: Its suitability for aerial and pipeline laying methods provides flexibility in deployment, acco-
mmodating different installation scenarios efficiently.
3 Broad Communication Scope: Capable of supporting both long-distance communication needs and local area
network setups, making it versatile for various networking applications across different distances.
Characteristic
1 Good mechanical and temperature performance
2 High strength loose tube that is hydrolysis resistant
3 Special tube filling compound ensure a critical protection of fiber
4 Crush resistance and flexibility
5 PE sheath protects cable from ultraviolet radiation
6 Loose tube filling compound and 100% cable core filling
Structure details
| Fiber count |
6F-24F |
| Loose tube |
Material |
PBT |
Color |
white |
| Diameter |
2.9±0.05mm (6-12F) |
Thickness |
0.4±0.05mm (6-12F) |
| 3.5±0.05mm (24F) |
0.5±0.05mm (24F) |
| Yarn |
Material |
water blocking glass yarn |
Qty |
20 strands |
| Rip cords |
Qty |
(1110*2)*2 |
Color |
White |
| Armor |
Material |
Corrugated steel tape |
Diameter |
0.21*20mm |
| Out sheath |
Material |
HDPE |
Color |
Black |
| Diameter |
7.4±0.2mm (6-12F) |
Thickness |
1.2-1.3mm (6-12F) |
| 8.5±0.3mm (24F) |
1.3±0.1mm (24F) |
| Net weight |
48±5kg/km |
Mechanical and environment performance
| Tensile strength |
Max. |
2000N |
| Crush load |
Max. |
2000N/100mm |
| Bending radius |
Dynamic |
20D |
| Static |
10D |
| Storage temperature |
-50℃～+70℃ |
| Operating temperature |
-40℃～+70℃ |
